AESUB Frame
AESUB Frame
The AESUB Frame is designed to quickly digitize small and medium-sized objects. It keeps the object securely in place, making sure it is accurately and consistently positioned for scanning. This reduces errors and allows the scanner’s position to be tracked relative to the object, so individual scans can be easily combined into a complete 3D model. Using this 3D scanning accessory will save you time and effort by reducing the need for tedious post-processing.
Features
- Transparent plastic
- Modular assembly
- Extreme lightweight and stiff structure

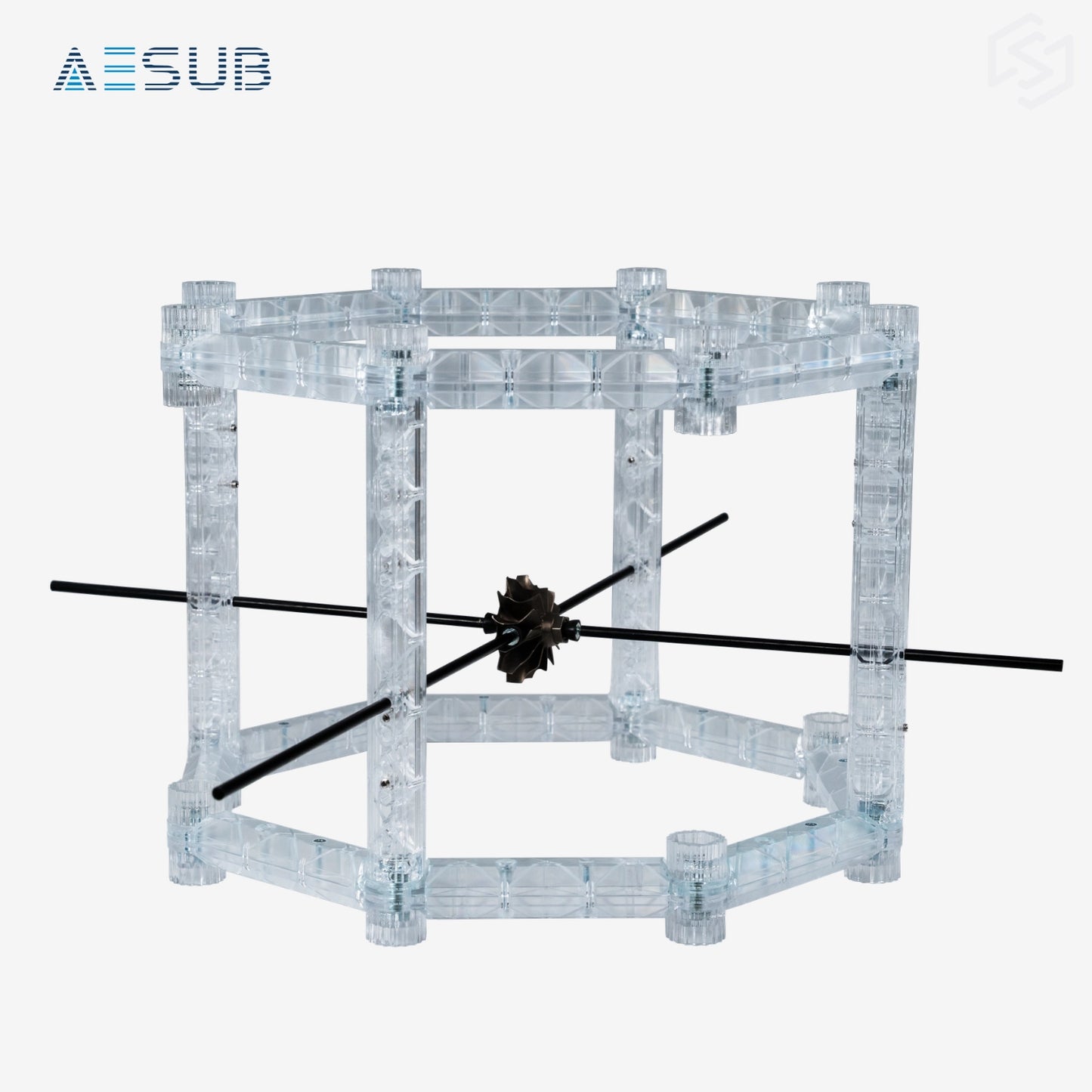

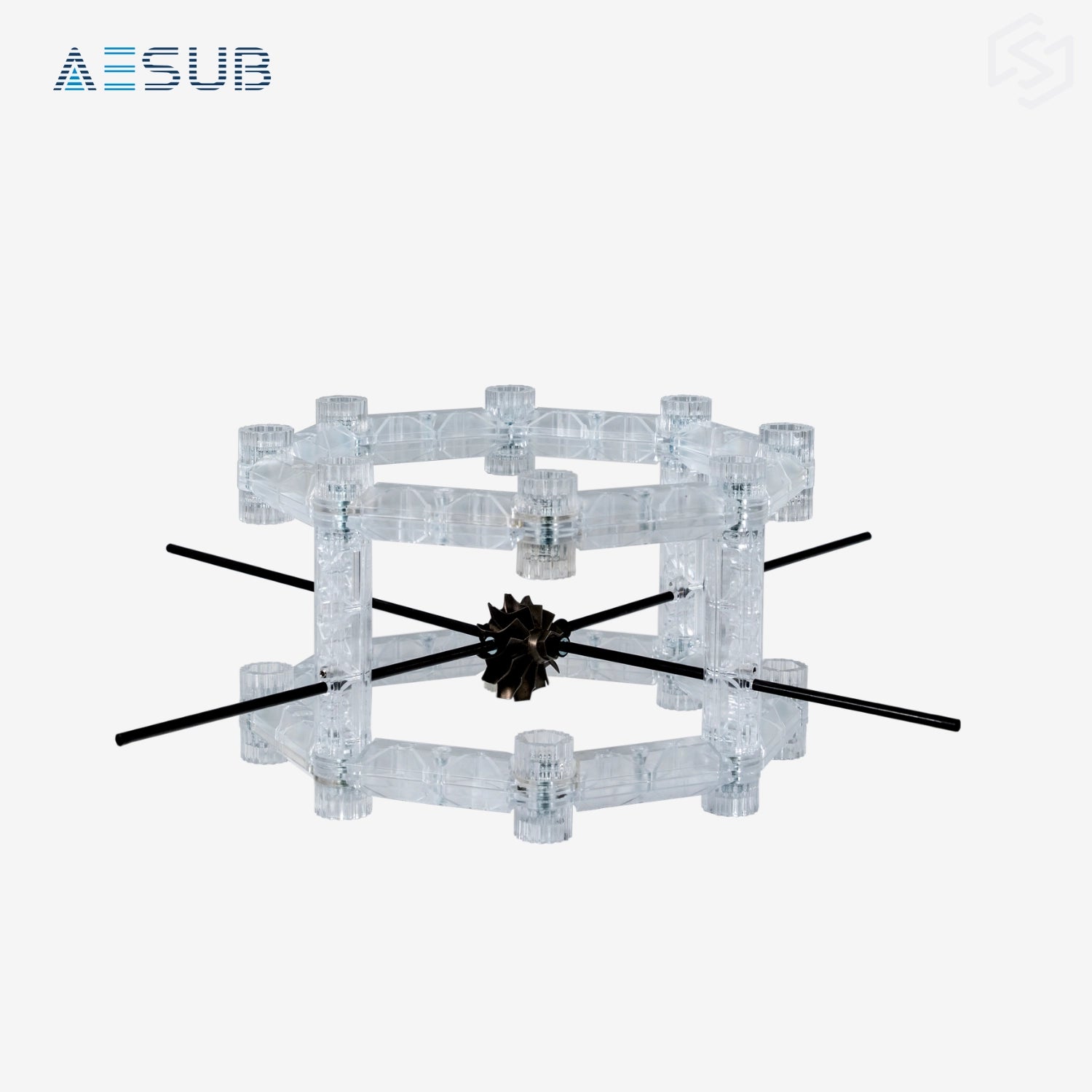

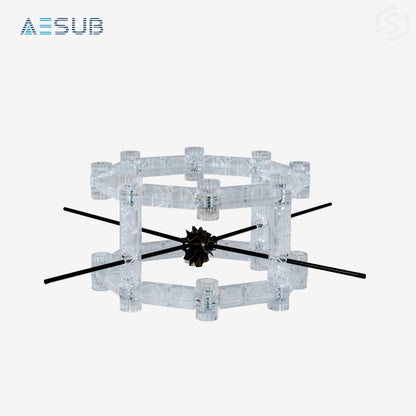

- 200mm frame is ideal for small parts, 300mm frame for mid-sized parts
- Ideal for scanning: components, small parts in production, stamped parts, milled parts, medical components
- Optimized for use with AESUBdots and AESUB Dice
Set includes
- 4 × Hexagon Ring 100 Profile (for 200mm frame) / 200 Profile (for 300mm frame)
- 16 × Hexagon Ring 200 (for 200mm frame) / 300 (for 300mm frame)
- 16 × Bolt
- 8 × Nut
- 4 × Steel Rod (Black)
- 4 × Rubber Pin
- 1 × Allen Key (for 200mm frame)
Couldn't load pickup availability
Share

Differences Between AESUB Dots, Dice, and Target Net Markers
AESUBdots – Black & White
Circular adhesive reference markers designed for structured-light 3D scanners.
AESUBdots – Retro Reflective
Self-adhesive retroreflective markers for laser 3D scanning.
AESUB Dice
Reusable geometric markers hold up to 11 retroreflective targets on each die face.
AESUB Target Net
A flexible mesh pre-populated with ~300 magnetic retroreflective markers.
