3DMakerpro Mole 3D Scanner
3DMakerpro Mole 3D Scanner
Mole is an affordable, high-quality consumer 3D scanner for 3D scanning medium-sized objects known for precise accuracy and seamless tracking.
-

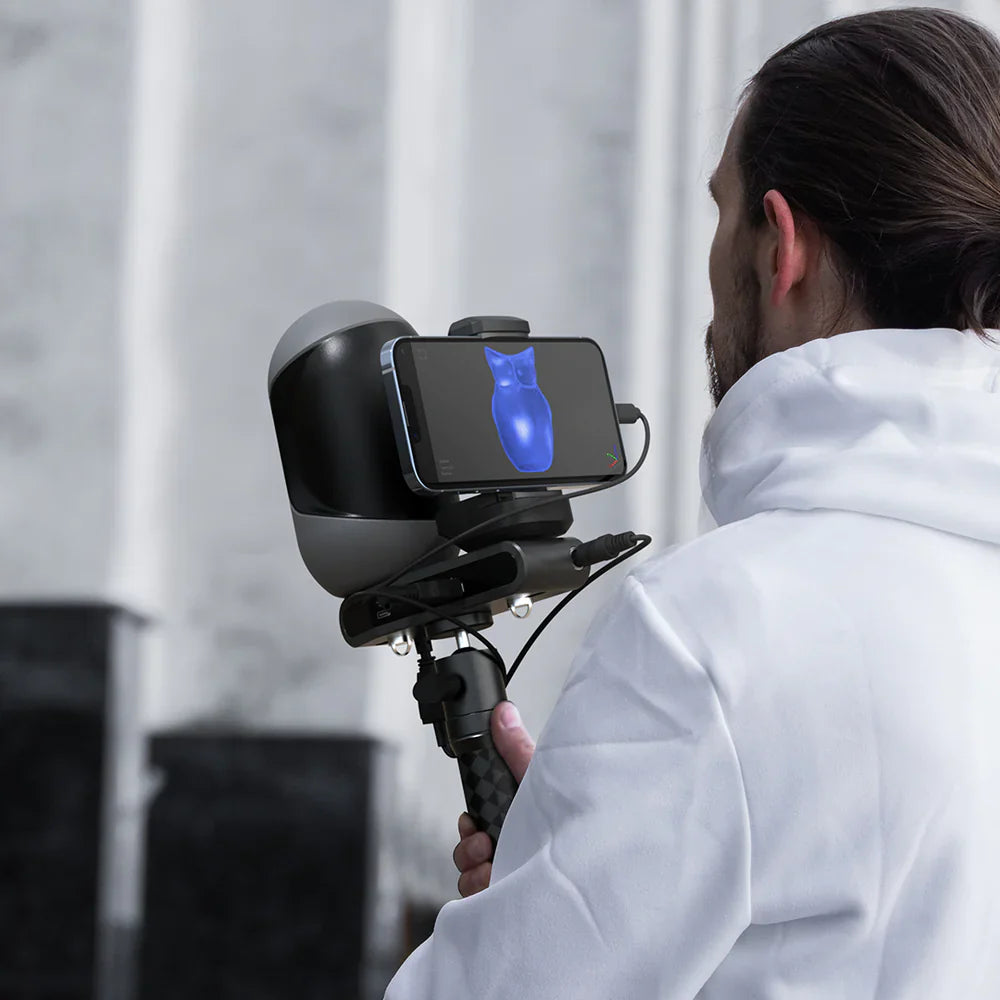

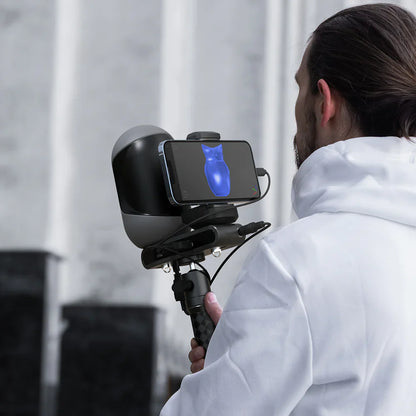

Connect to a Smart Phone: A dedicated mobile scanning app is connected to a smartphone (requires optional Connect for iOS or Android).
- Standard and premium bundles capture 3D models in monochrome (grayscale). To capture color models, you will need the color kit (included in the luxury bundle).
Exclusive Limited-Time Deal
Get a free can of AESUB Orange vanishing 3D scanning spray (a $42 USD value) with the purchase of a 3DMakerpro 3D scanner.
Add scanner to cart to receive the free item automatically.
Excludes Raven, Eagle, and Hawk LiDAR Scanners.
Couldn't load pickup availability
3DMakerpro
JMStudio 3D Scanning Software
JMStudio 3D Scanning Software
Scan quality depends heavily on software, which is why our proprietary JMStudio is essential. Years of continuous iteration have resulted in enhanced scanning and editing capabilities. Support for 8 languages and lifetime free OTA updates.
Windows | MacOS: JMStudio is 3DMakerpro's exclusive software, handling multi-mode data acquisition, high-def preview, texture mapping, and 3D model generation for scanning equipment.
Android | iOS for Mobile: JMStudio has launched a mobile version as part of the 3DMakerpro lightweight scanning plan. Paired with Connect, you can now scan and obtain any 3D model you desire, anywhere.
JMStudio supports exporting files in formats like OBJ, STL, ASC, empowering you to edit, refine, render, or print your scans using your preferred design software.
System Requirements
System Requirements
- Output format: OBJ/STL/PLY
- Compatible system: Windows10/11 64bit, MacOS12/13
- Compatible mobile: Android 10.0 or later, iOS 15.0 or later
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
What's In the Box
What's In the Box

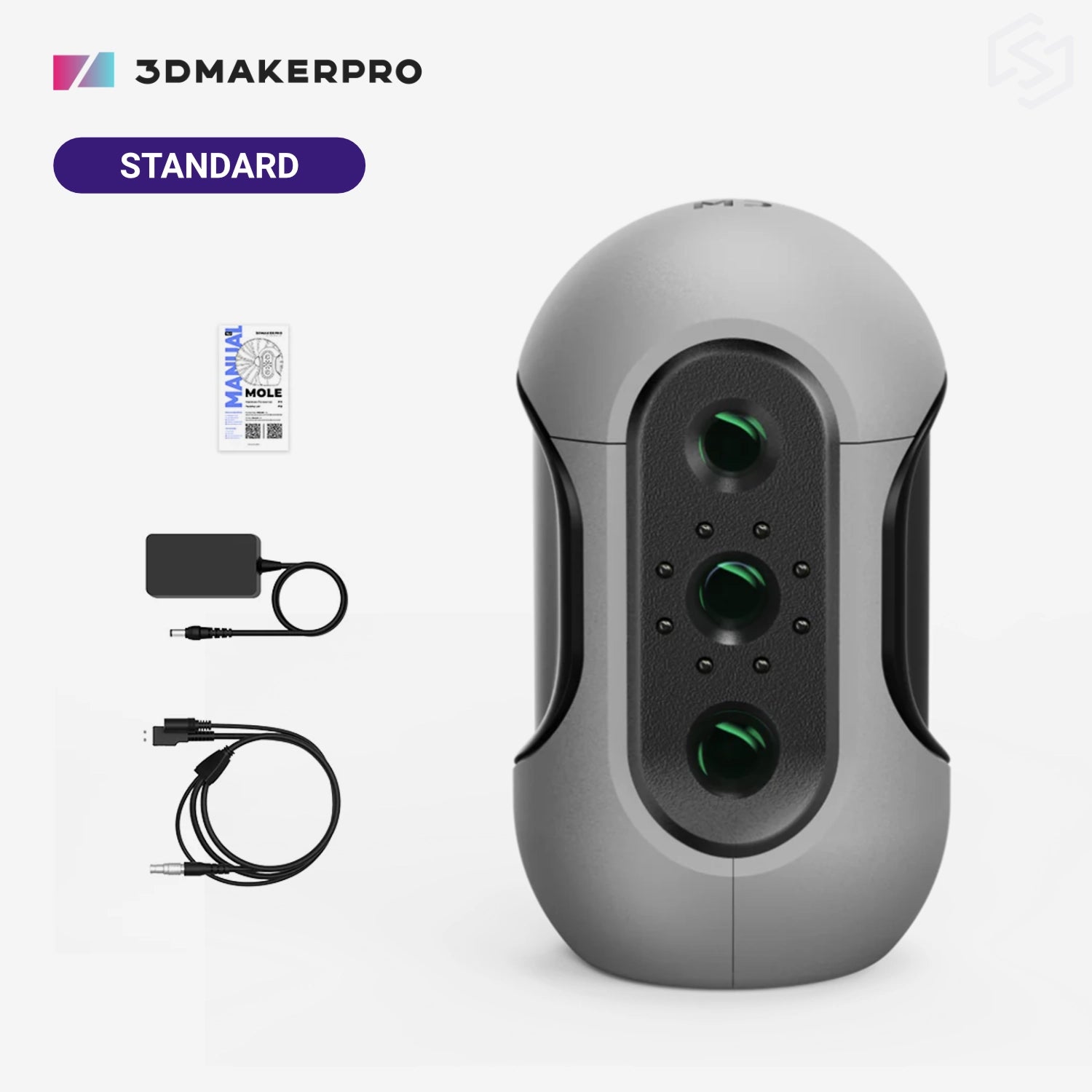

Standard Package
- Mole 3D scanner
- Power cord
- Data cable

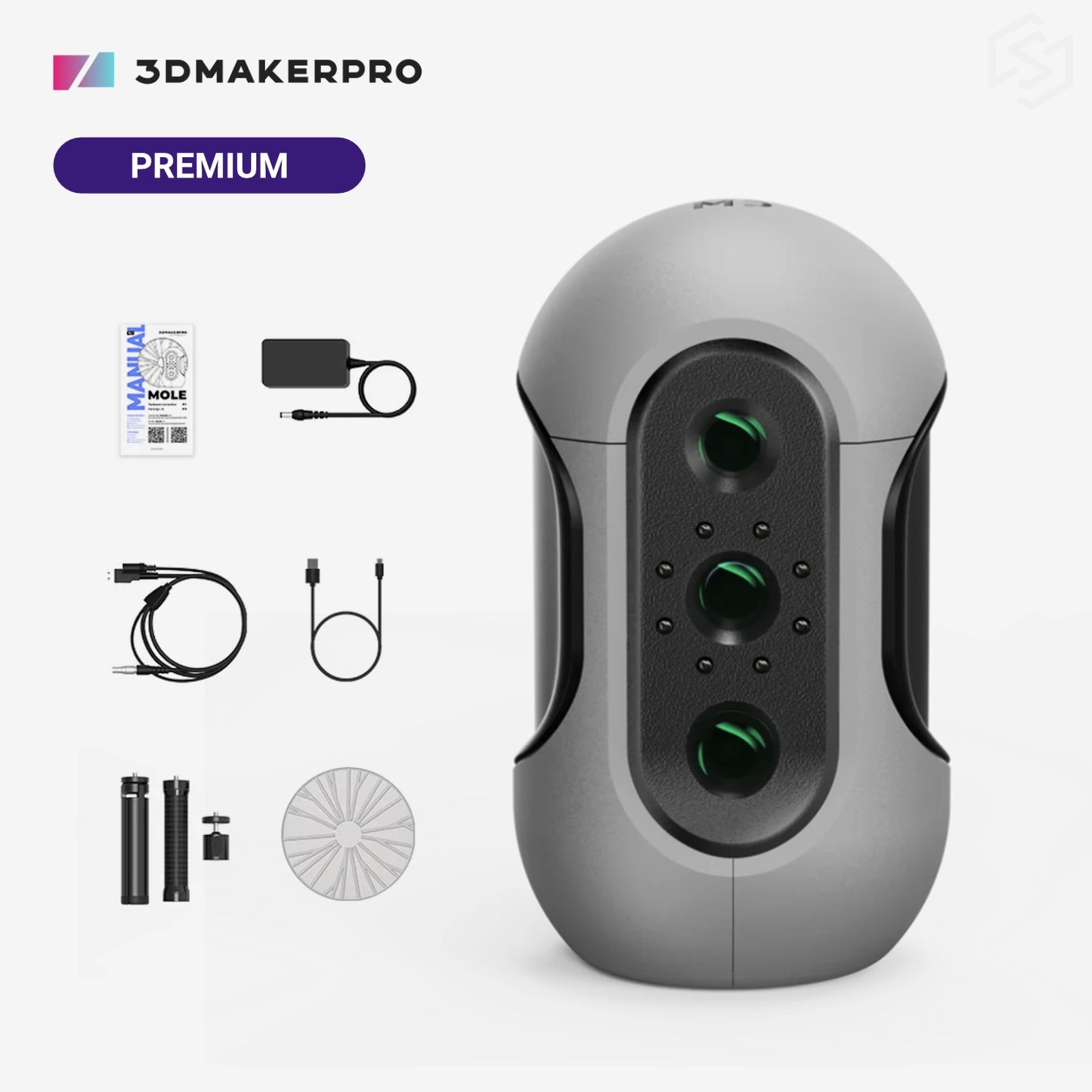

Premium Package
- Mole 3D scanner
- Power cord
- Data cable
- Small tripod to convert it into a desktop 3D scanner

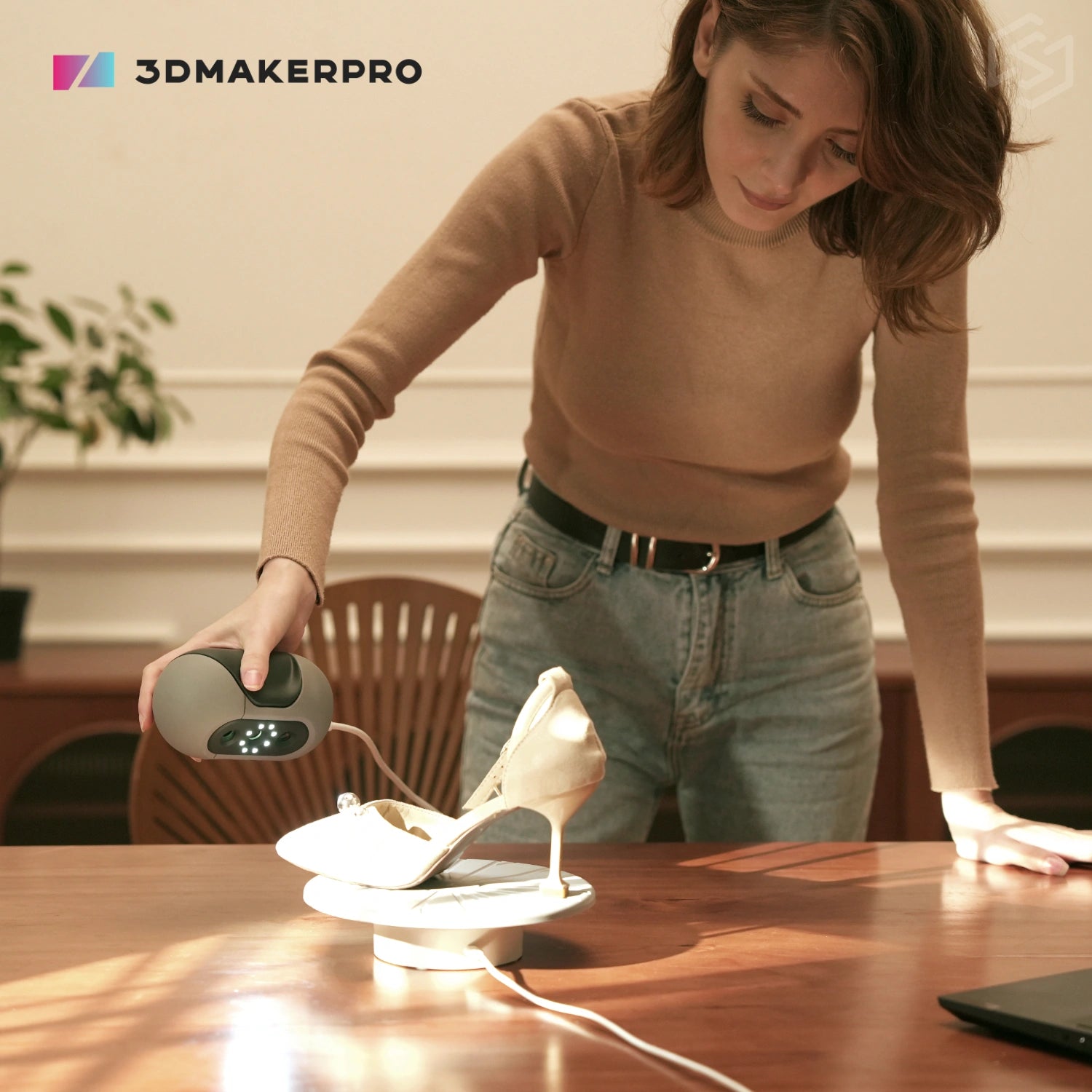

- Turntable for automated 3D scanning

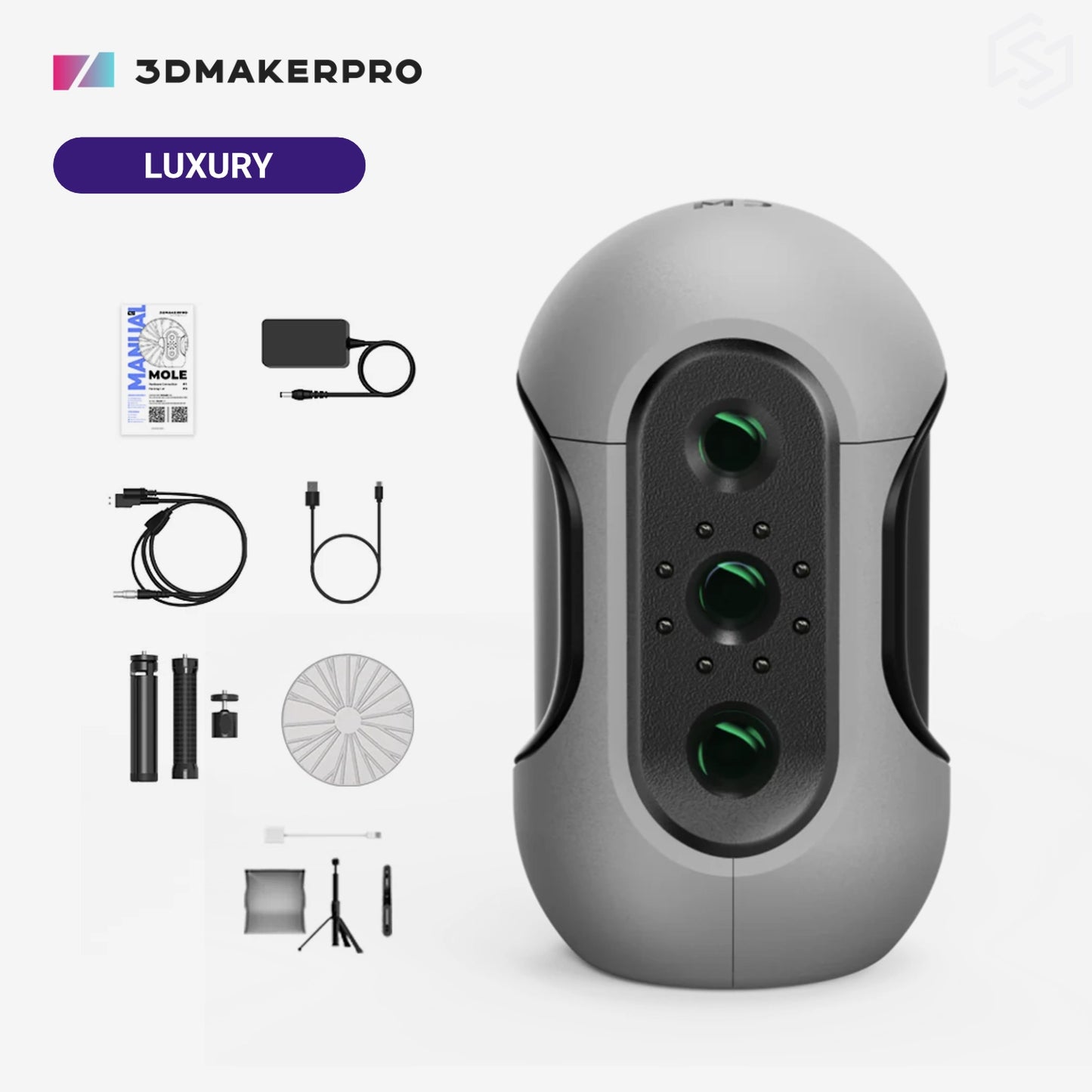

Luxury Package
- Mole 3D scanner
- Power cord
- Data cable
- Small tripod to convert it into a desktop 3D scanner
- Turntable for automated 3D scanning
- Color kit

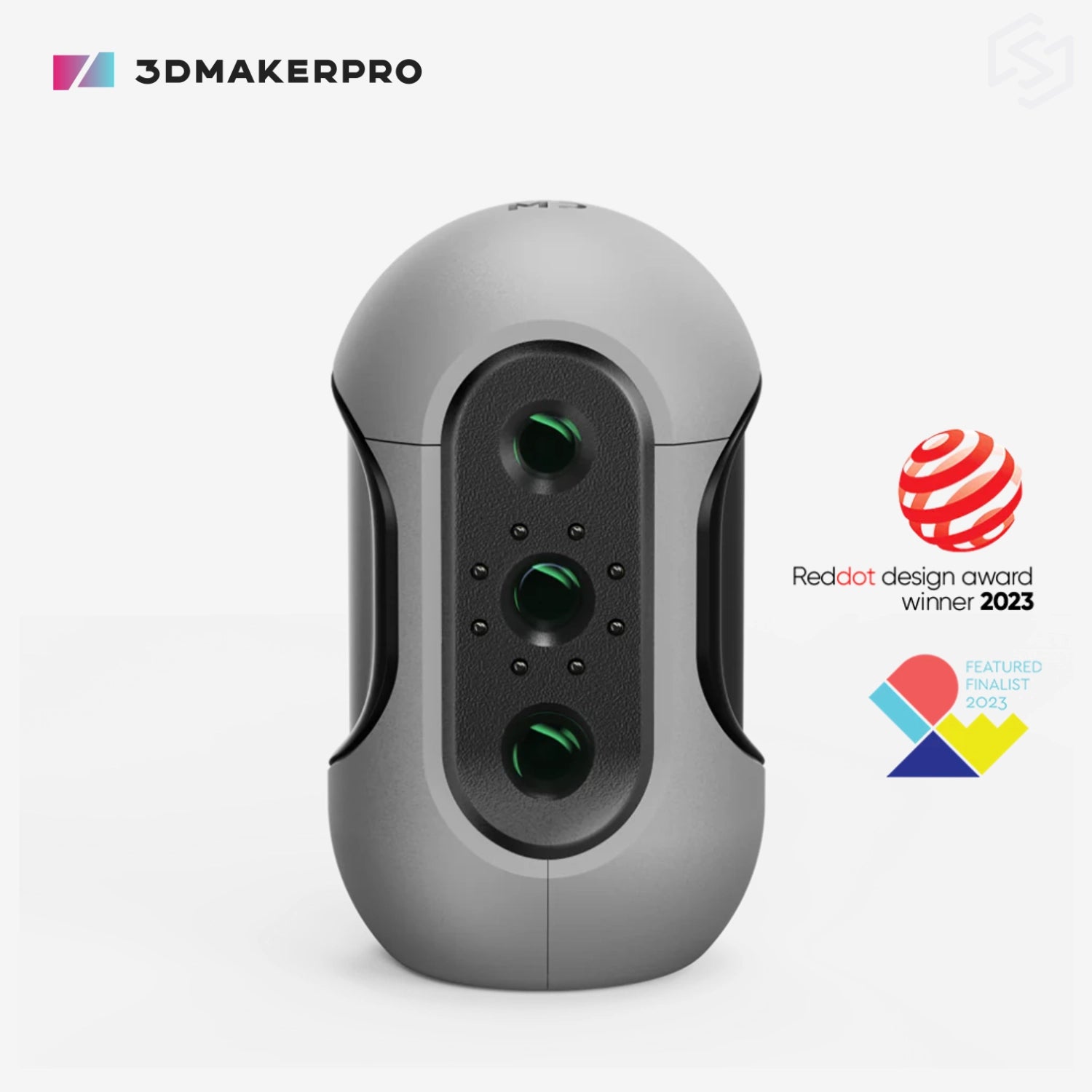

Meet the Mole 3D Scanner
Features
- Near Infrared (NIR) technology: Produce excellent scanning results for objects of different colors.
- Visual tracking: Using visual tracking technology and proprietary self-developed AI algorithm, Mole enables markerless 3D scanning, saving you significant time.

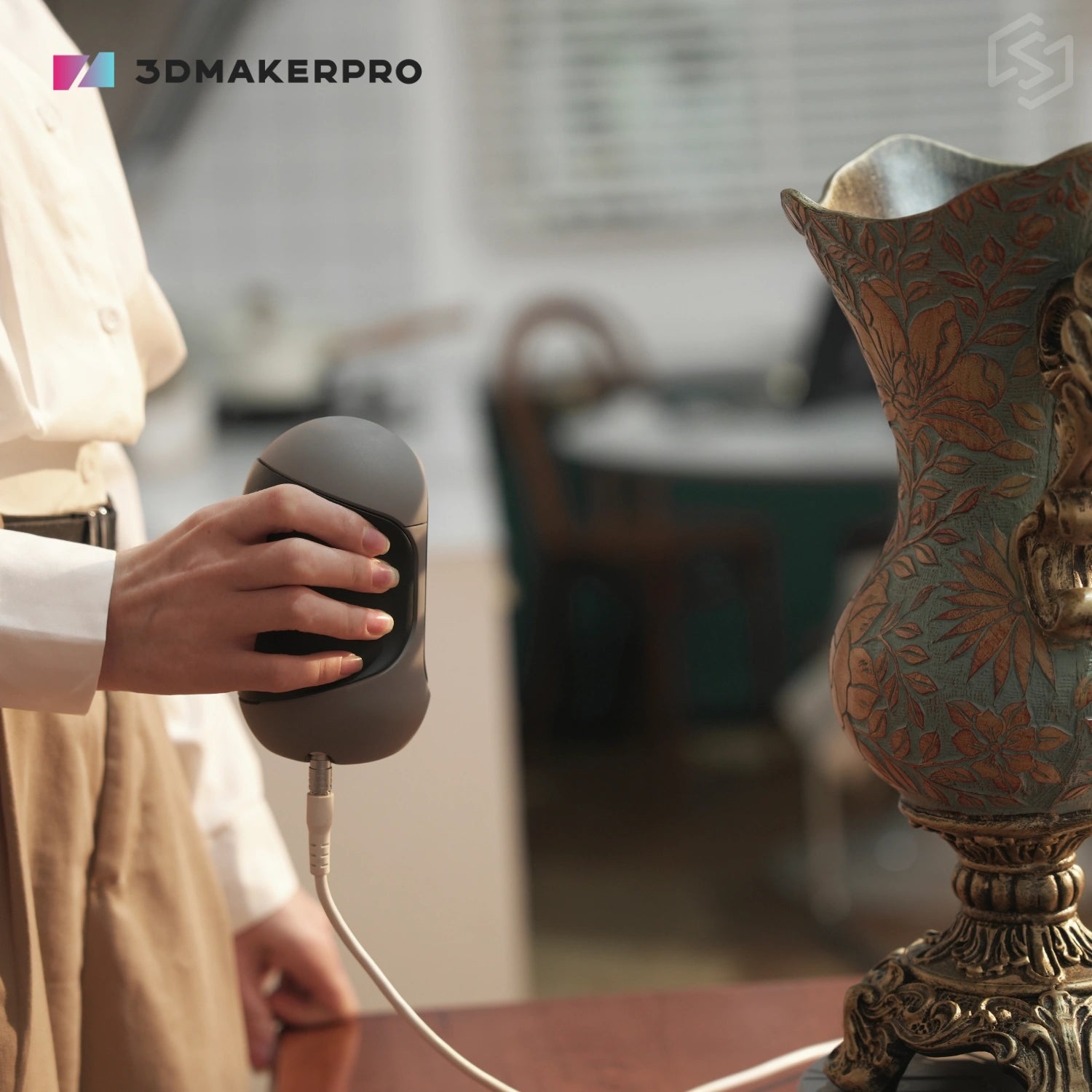

- Optical anti-shake modules: Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion.
- Regulated optimal temperature: Mole's internal cooling fan operates quietly while reduces the temperature, ensuring that it can operate for extended periods of time.

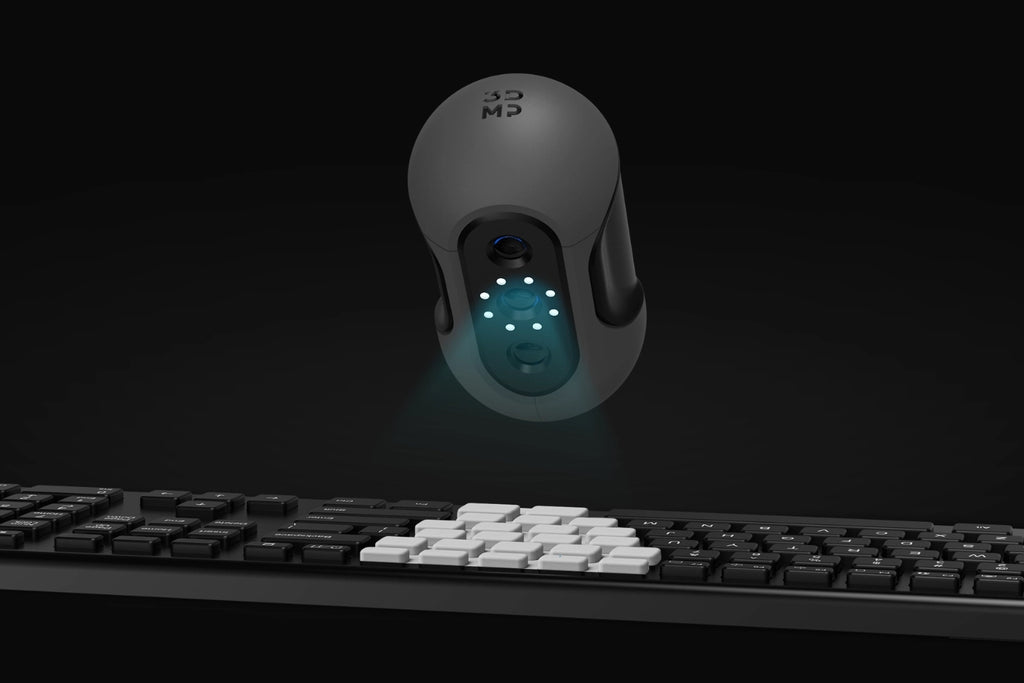

- 3D scanning dark objects: The Mole can scan black objects. For extremely reflective and transparent objects, you may need to spray on them.
Package Differences
- Standard package includes the Mole 3D scanner, a power cord, and a data cable
- Premium package includes everything in the Standard package. It also includes a small tripod (convert to a desktop 3D scanner) and a turntable (for automated 3D scanning).
- Luxury Package includes everything in the Premium package. This is the only bundle that includes a color kit for capturing 3D models in color.
- True color supports DSLR & Mirrorless: The Luxury package comes with a professional-level color kit, which can work with mainstream SLRs (Single-lens Reflex Camera) and MILCs (Mirrorless Interchangeable-lens Camera), and automatically maps the true color to the 3D model.

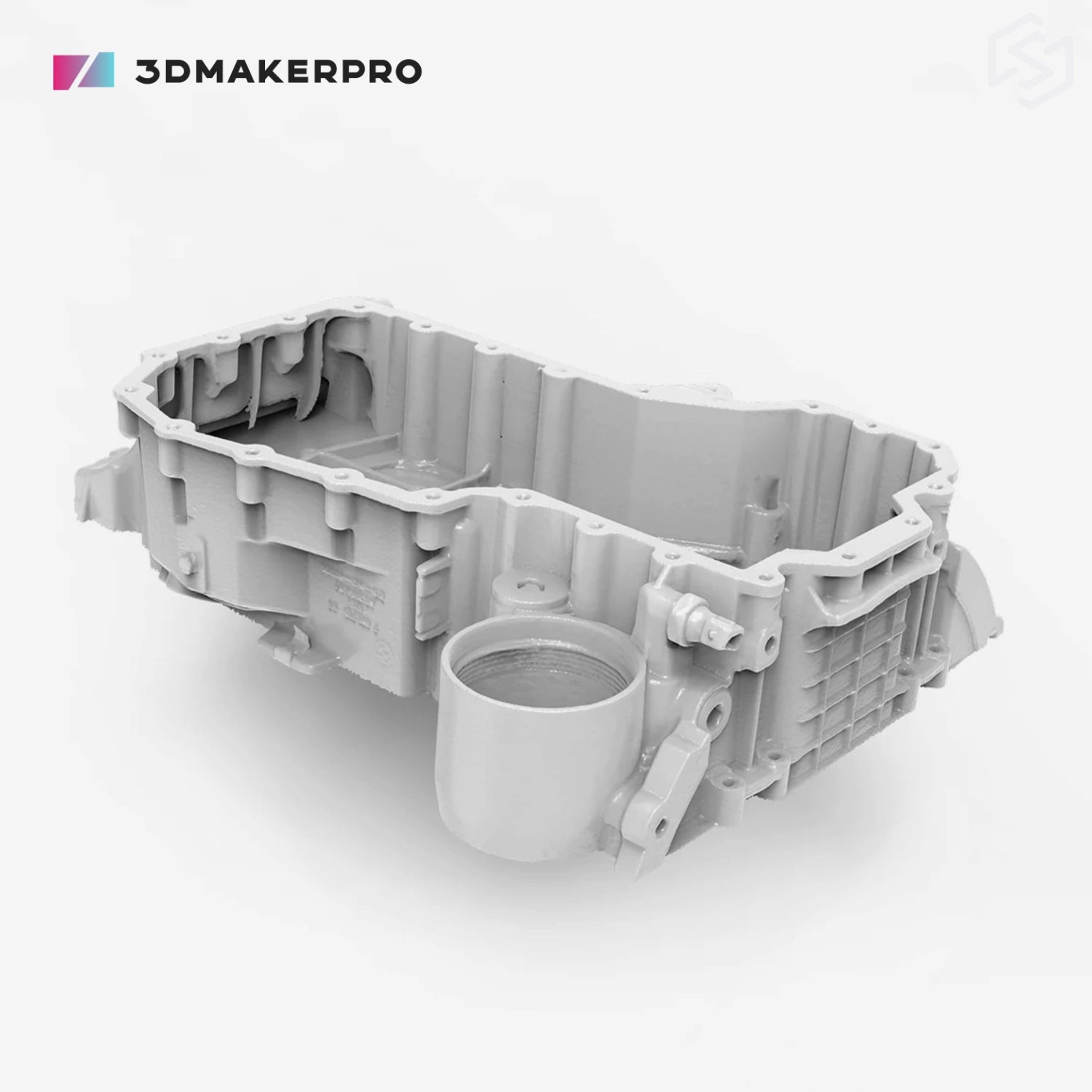

Scan Samples
Technical Specification
| Accuracy | 0.05 mm |
|---|---|
| Resolution | 0.10 mm |
| Frame Rate | 10 fps |
| Tracking Mode | Visual Tracking |
| Working Distance | 150–400 mm |
| Single Capture Range | 200 × 100 mm |
| Typical Object Sizes | 15–1500 mm |
| Light Source | NIR |
| Color Texture | Extended Support |
| USB Interface | USB 2.0 |
| Dimensions | 141 × 80 × 80 mm |
| Weight | 390 g |
