Geomagic Wrap for 3DMakerpro

Geomagic Wrap for 3DMakerpro

$279.00 USD
$399.00 USD $279.00 USD
Sale Sold out

Geomagic Wrap for 3DMakerpro is a simple, lightweight solution for bringing the world of 3D scanning into the familiar CAD environment. Take any scanned model, extract the features you want, and create solid models and complex profiles into your design environment.

  • Essential or Lite version available
  • High-quality automatic CAD conversion
  • Automatic mesh healing
  • Industry-standard mesh processing and refinement
  • Extensive select and feature fit workflows
  • Region detection feature
  • Extraction cross-sectioning (curves and sketch-like results)
Version

3DMakerpro

View full details

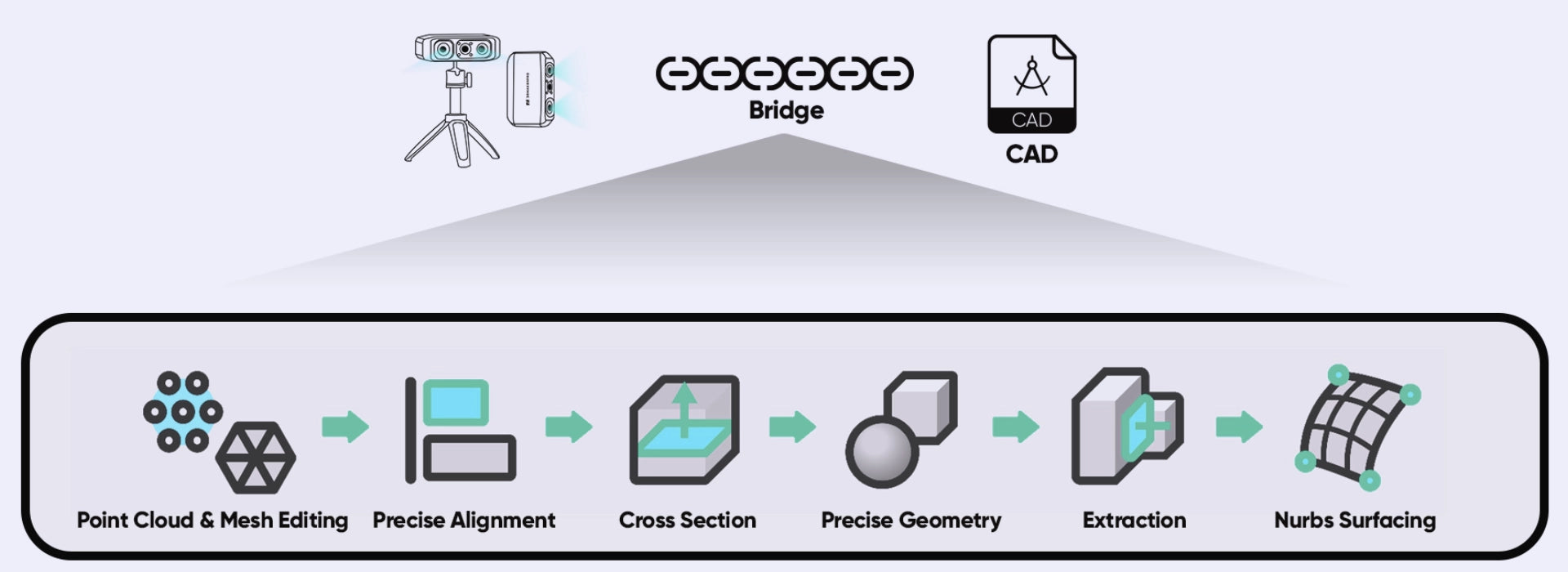

Bridge Between 3D Scan and CAD

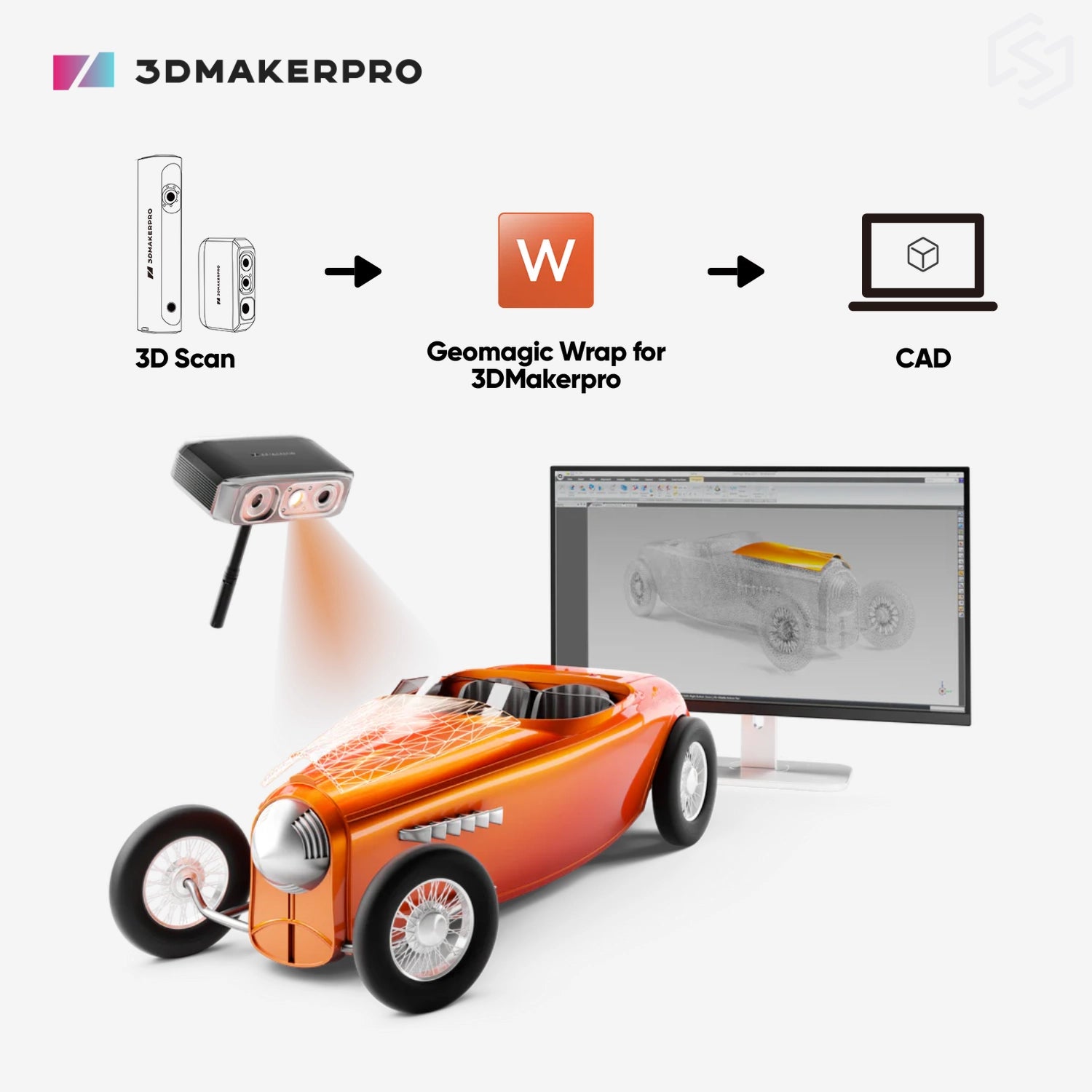

Geomagic Wrap takes point clouds or mesh files from your 3DMakerpro 3D scanner and converts them into clean polygon meshes and surface/solid models suitable for CAD, 3D printing, and analysis. It focuses on scan‑to‑CAD workflows, so you can move from a physical part to a digital model ready for downstream use in engineering, art, or product design.

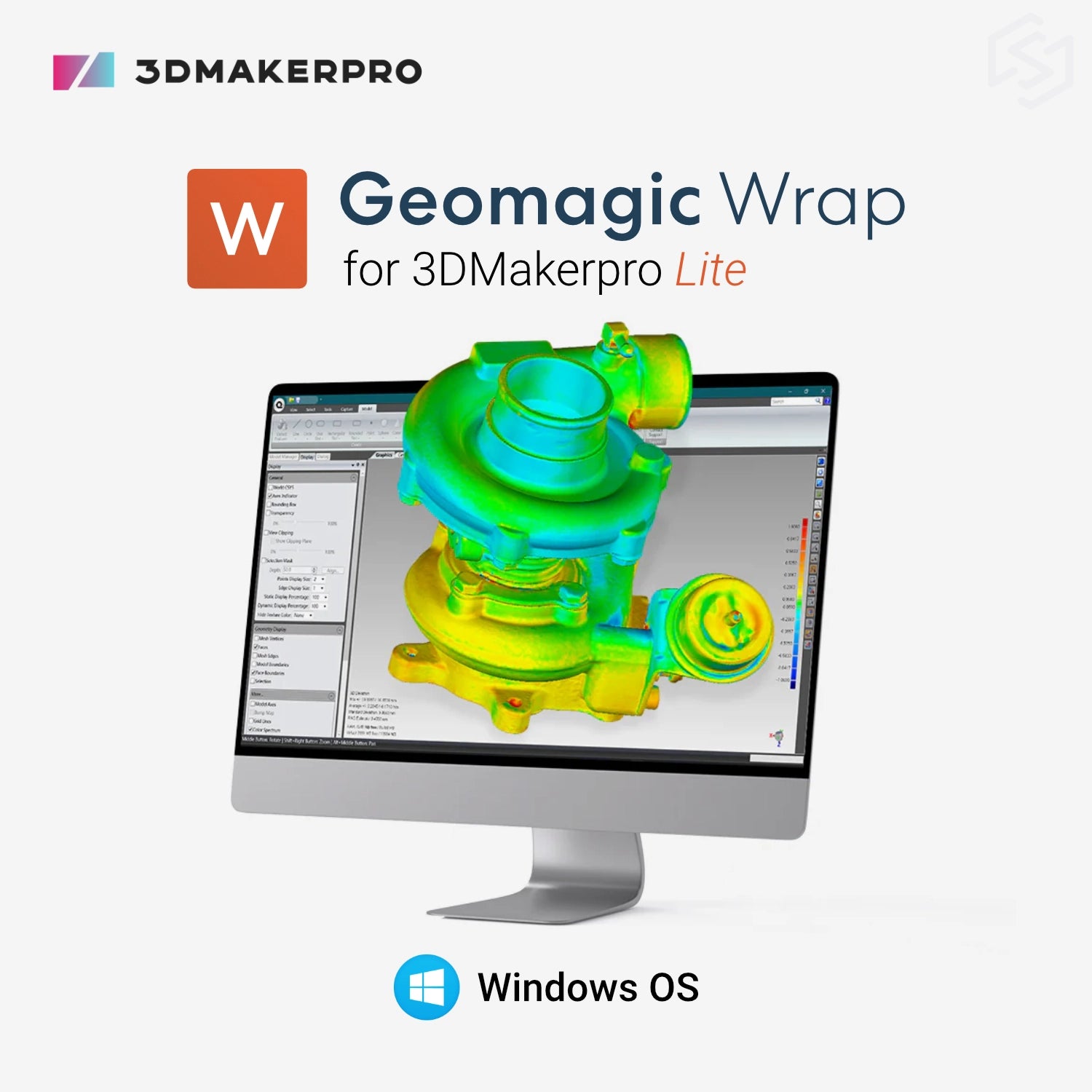

Lite Version

Directly edit and manipulate scans and high-quality hole filling for water-tight mesh models.

  • Life-time license and free updates
  • Import neutral 3D scan formats (STL, OBJ, PLY, XYZ, PTS)
  • Basic Scan-to-Scan Alignment and Refinement
  • Basic Point Cloud Editing
  • Basic Polygon Healing and Refinement
  • 3D Measurement Tools

Essentials Version

High-quality automatic CAD conversion. The ability to export neutral CAD formats (STEP, IGES) as well as 3D curve drawing and editing.

All features in Lite version, plus:

  • Cross Section through Models
  • Accuracy Analysis for 3D Solids
  • Export neutral CAD formats (STEP, IGES)
  • Automatic Prismatic Feature Detection and Extraction
  • Constrained Prismatic Feature fitting to Scans- Point, Line, Plane, Sphere, Cone, Torus, etc.
  • Export of fit features in neutral CAD formats
  • 3D Curve Drawing and Editing
  • Automatic Surfacing - Fast Polygon to CAD conversion

Scan Processing Features

Point Cloud & Mesh Editing

  • Directly edit and manipulate scans.
  • High-quality hole filling for water-tight mesh models.
  • Manage file size through decimation for fast processing. Refine model for direct .stl ready process.

Precision Alignment

  • Directly edit and manipulate scans.
  • High-quality hole filling for water-tight mesh models.
  • Manage file size through decimation for fast processing. Refine model for direct .stl ready process.

Feature Extraction and Modeling Features

Cross Section / Precise Geometry / Extraction

  • Extract CAD perfect Shapes from the scan data.
  • Compare design features to reference scan data for accuracy analysis.
  • Control extents and constraints on modeling features.
  • Easily create curve or line-arc cross sections for direct CAD usability.

Nurbs Surfacing

  • Draw and trace complex features to generate curves for reference and modeling aids.
  • Convert to a solid format to interact with as-is geometry.
  • Import all geometry into the Native CAD package for a familiar modeling environment.

Recommended System Requirements

* provided by 3DMakerpro

Operating System Windows 10 (64-bit)
CPU Multiple core processor. Hyper-threading and clock speeds above 3GHz can be beneficial but should be paired with a good balance of cores.
RAM 8 GB or more
Hard Disk A SSD with more than 256GB of space or a 10000RPM HDD. it is recommended using multiple hard drives and assigning one as a "cache" drive for temporary storage and paging files and assigning the other for the operating system.
Display Screen resolution 1280x1024 or higher
GPU NVIDIA Quadro or above

FAQs

What are the minimum system requirements?
  • OS: Windows 8.1~Windows 11 (64-bit)
  • CPU: Intel® or AMD® processor with a minimum of 2.0GHz
  • RAM: 8 GB or more
  • Hard Disk: 30GB of available hard-disk space. Additional space may be reguired for cache. Temporary file cache reguires about 3GB free disk space for every 100 milion points.
  • Display: 32-bit true color required. Screen resolution 1280x960
  • GPU: NVIDIA Quadro

What are other system requirements to run Geomagic Wrap for 3DMakerpro?
  • 3 button mouse with scroll
  • Sound card
  • Keyboard
  • Network card
  • Microsoft Windows Installer 3.0+
  • Adobe Acrobat/Reader version 5.x or higher
  • Microsoft DirectX 9.0c or later
  • Microsoft .NET 4.0 or 4.5 Framework
  • Google Chrome or Internet Explorer 11 or Microsoft Edge 41, or newer

What does Geomagic Wrap for 3DMakerpro not support?
  • Geomagic Wrap is designed for object scanning and may not be optimal for LiDAR spatial scans.
  • Windows virtual machines (VMs) on Apple/Linux OS and Apple Boot Camp are not supported.
  • Microsoft Surface tablets are not supported.
  • Using two GPUs with SLl is not supported.
  • Using a non-recommended card may result in random crashing, graphical anomalies, or data corruption. Use of any non-recommended configuration at your own risk.
