Creality Otter Lite 3D Scanner

$759.00 USD

Sale Sold out

Shipping calculated at checkout.

The Otter Lite is designed for users who want the flexibility to scan anywhere without sacrificing accuracy, making it a strong option for makers, designers, engineers, educators, and 3D printing enthusiasts.

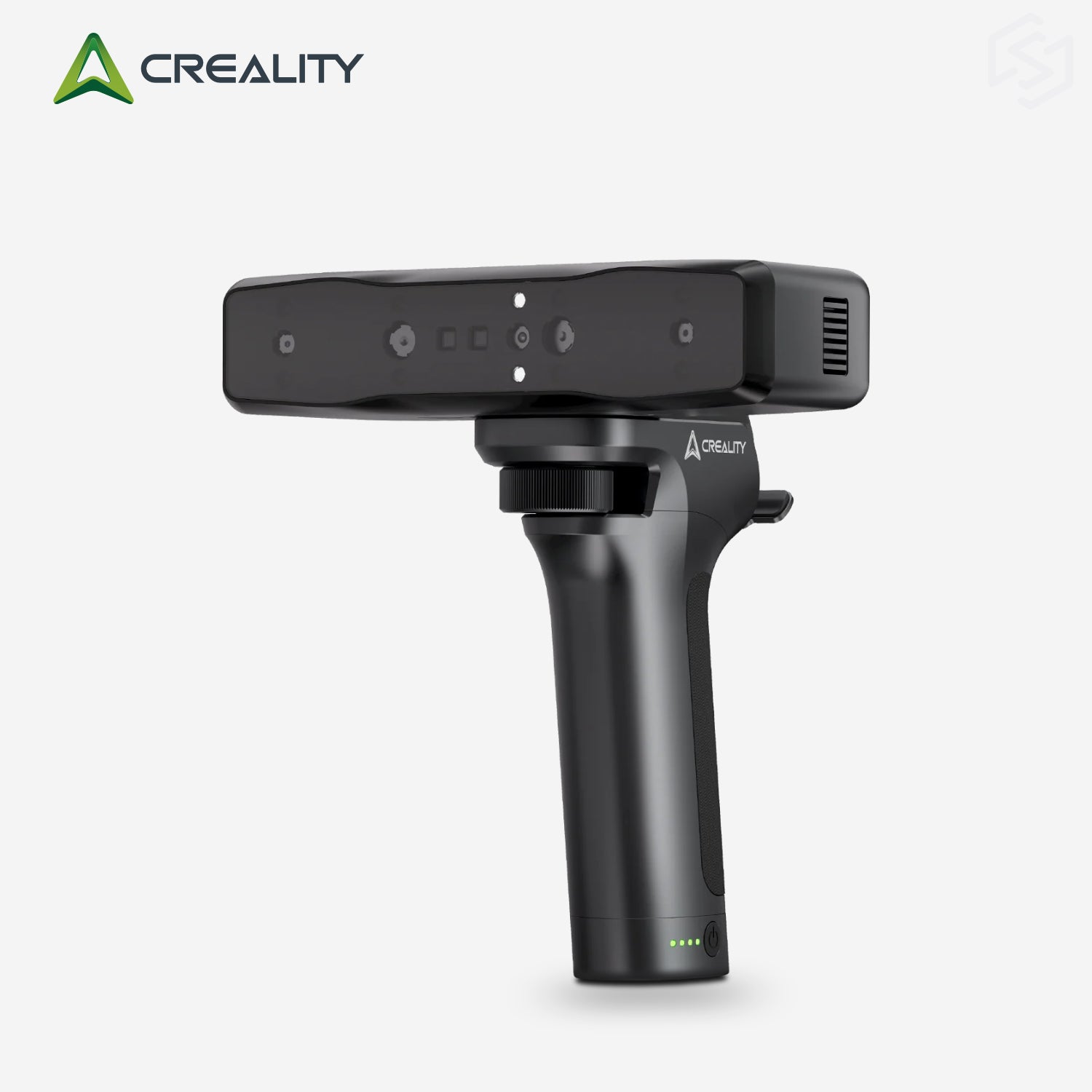

Otter Lite: A versatile, portable 3D scanner designed for wireless scanning with high precision and ease of use. It features up to 0.05 mm accuracy, scans objects ranging from 20 mm to 2 m. Otter Lite captures full-color models, and includes the Lite Bridge for built-in battery power and Wi-Fi connectivity, allowing cable-free scanning with a computer or compatible mobile device.

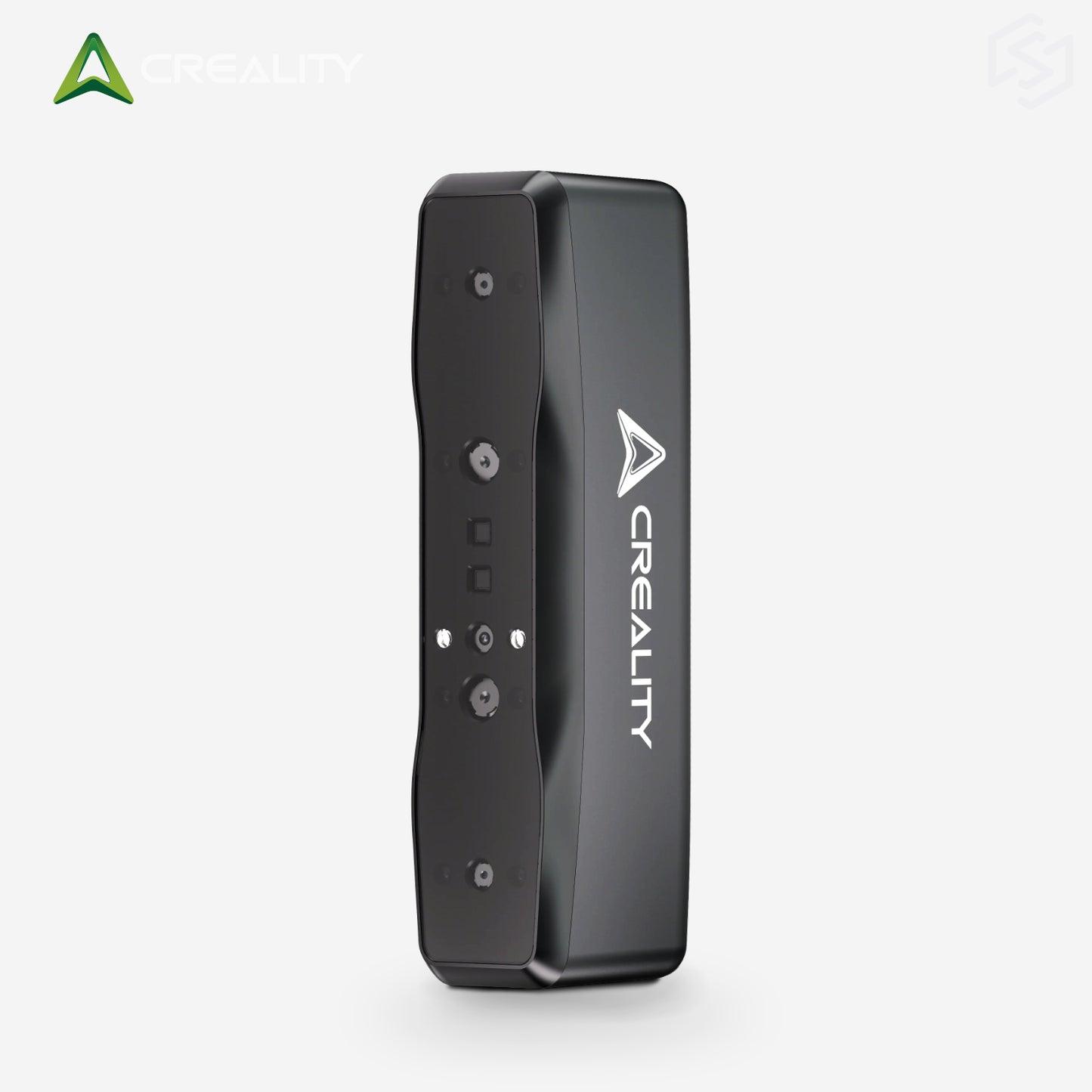

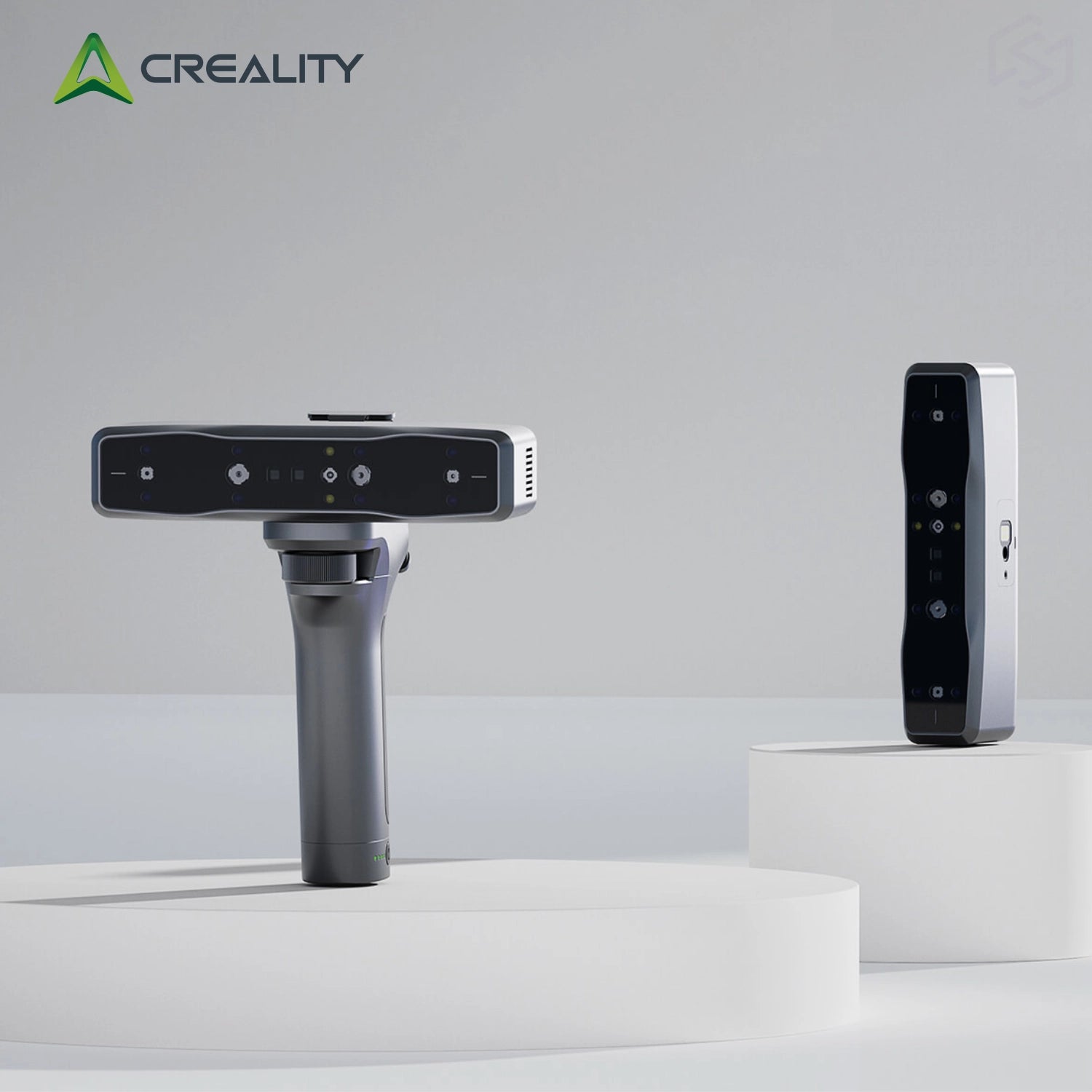

Otter Lite Basic: A more affordable, wired version of the Otter Lite that offers the same core scanning performance but does not include the Lite Bridge. It requires a wired connection to a computer for power and data transmission, making it ideal for users who primarily scan at a workstation.

Options Otter Lite Otter Lite Basic

Creality

System Requirements

Windows

OS: Windows 10 / 11 (64-bit)
Recommended: Intel i7 (7th Gen or newer), NVIDIA or AMD GPU, 16GB+ RAM
Minimum: Intel i5 (8th Gen or newer), 8GB+ RAM

macOS

Recommended: Apple M1 / M2 / M3, 16GB+ RAM
Minimum: Intel i5 (8th Gen or newer), 8GB+ RAM

Android

Chip: Qualcomm Snapdragon 888 or higher
OS: Android 10.0+
RAM: 6GB or more

iOS

Model: iPhone 13 (A15 Bionic) or newer
OS: iOS 15+
RAM: 6GB or more

Output Format

OBJ / STL / PLY

View full details

Versatile Size Range

4-lens stereo vision that allows to scan objects accurately from 20 mm - 2000 mm

Up to 0.05mm Accuracy

Delivers scanning accuracy of 0.05 mm at up to 30 FPS

Spray-Free Scanning

Accurately scan black and metal surfaces without applying scanning spray

Capture Small to Large Objects

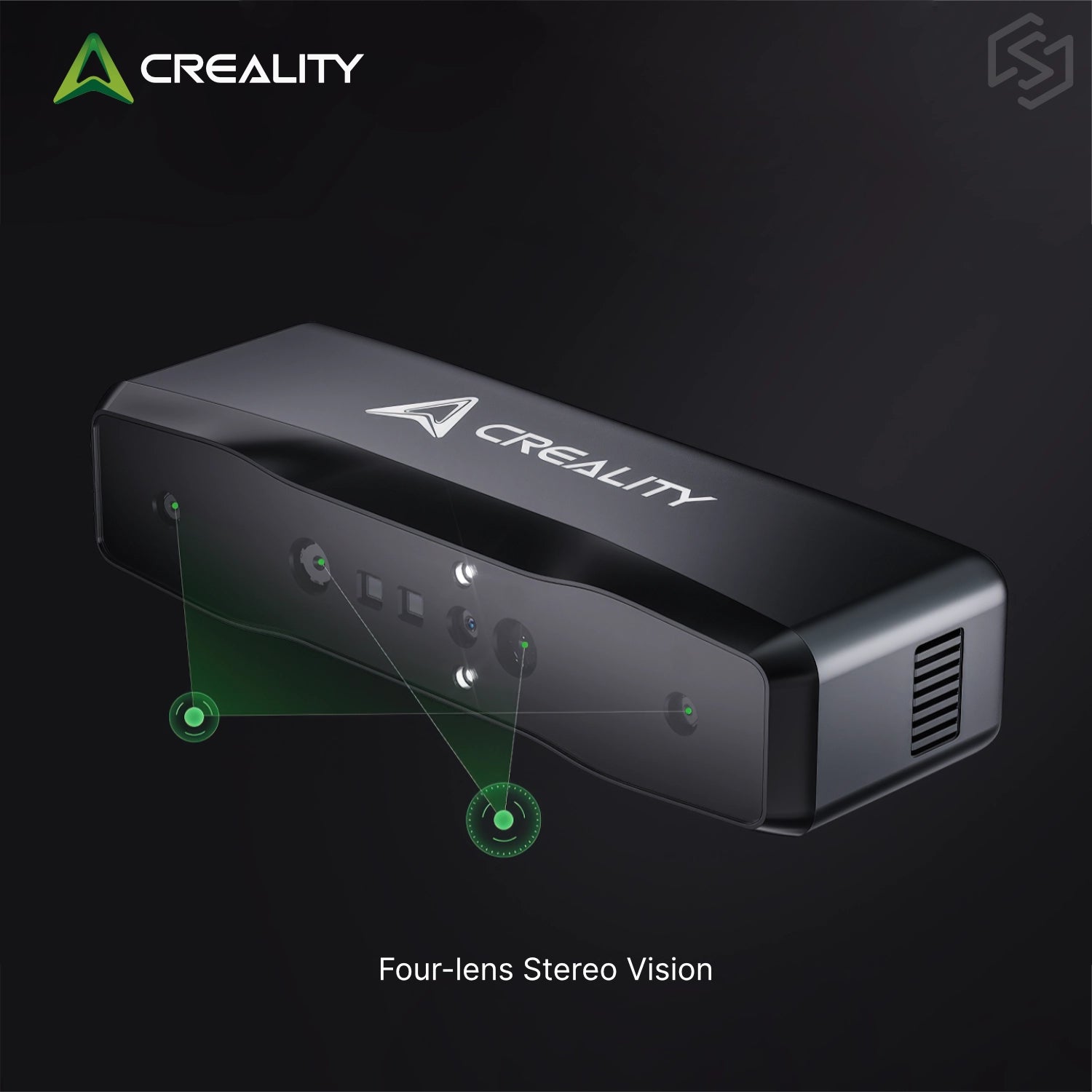

Featuring an innovative four-lens stereo vision system, the Otter Lite uses dedicated lens sets to capture both fine details on small objects and wider coverage on larger scans. With a scanning range from 20 × 20 × 20 mm³ to 2000 × 2000 × 2000 mm³, it can digitize everything from small shells and tools to vehicles.

Scanning Up to 30 FPS

High-speed scanning enables smooth, dynamic capture and efficient data acquisition for large objects.

Scan Faster, Prep Less

Otter Lite can scan cars, car parts, tires, and other black and shiny objects without the need for scanning spray, reducing overall project time.

Outdoor Scanning

Engineered with advanced DOE (Diffractive Optical Element) structured-light technology, Otter Lite offers enhanced environmental adaptability and maintains excellent performance even in sunlight (<30,000 lux).

Large Capacity & Fast Charging

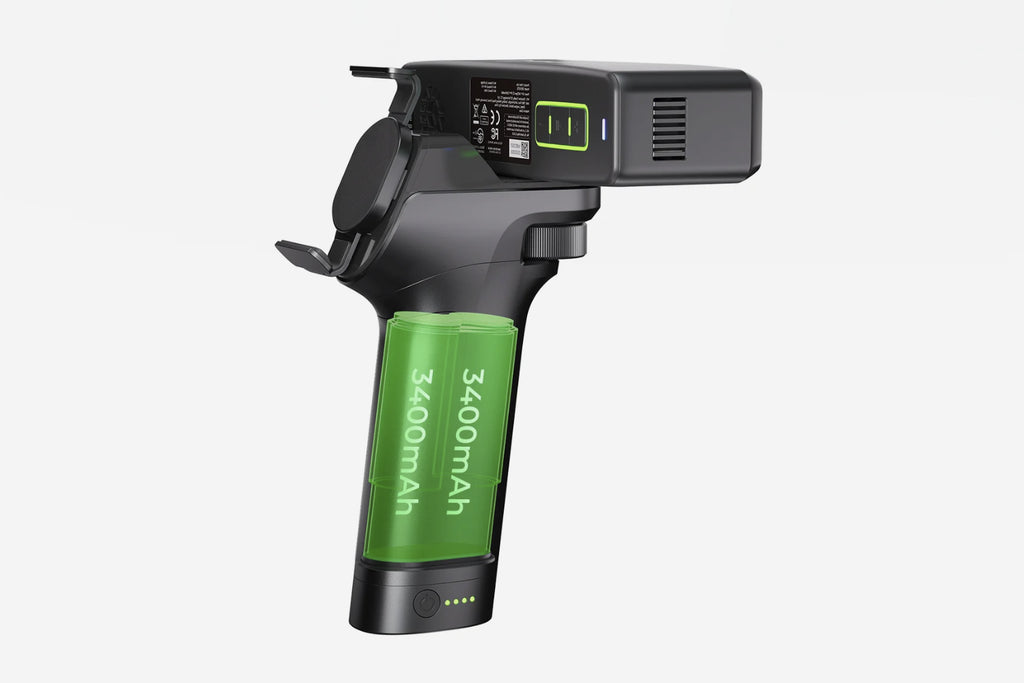

Large capacity 3400mAh battery (Airplane Safe) with up to 3 hours of continuous use without charging. Charges to 80% in just 1 hour, making outdoor scanning more convenient and worry-free.

3400mAh (Airplane Safe）

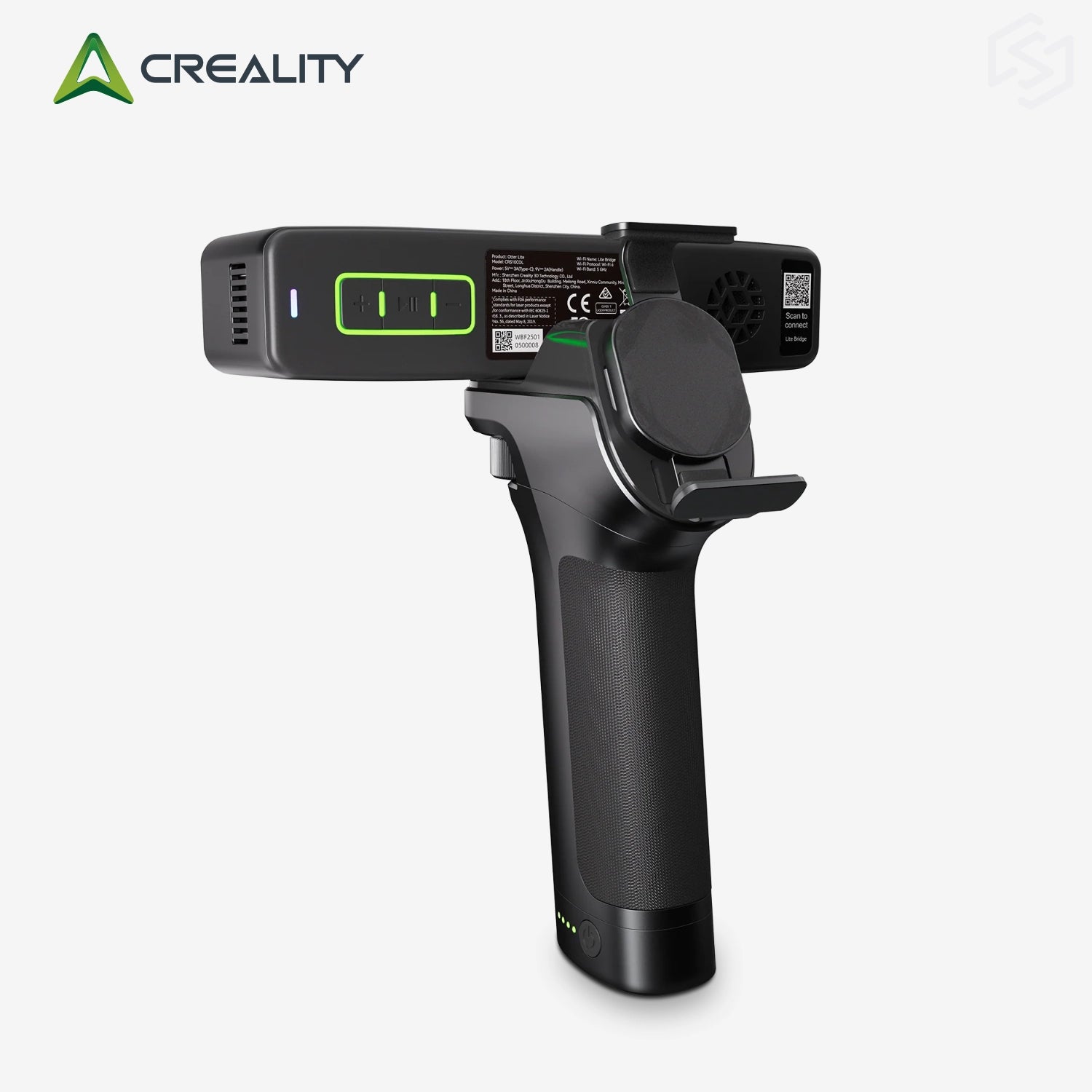

Magnetic Quick Setup
Battery Indicator

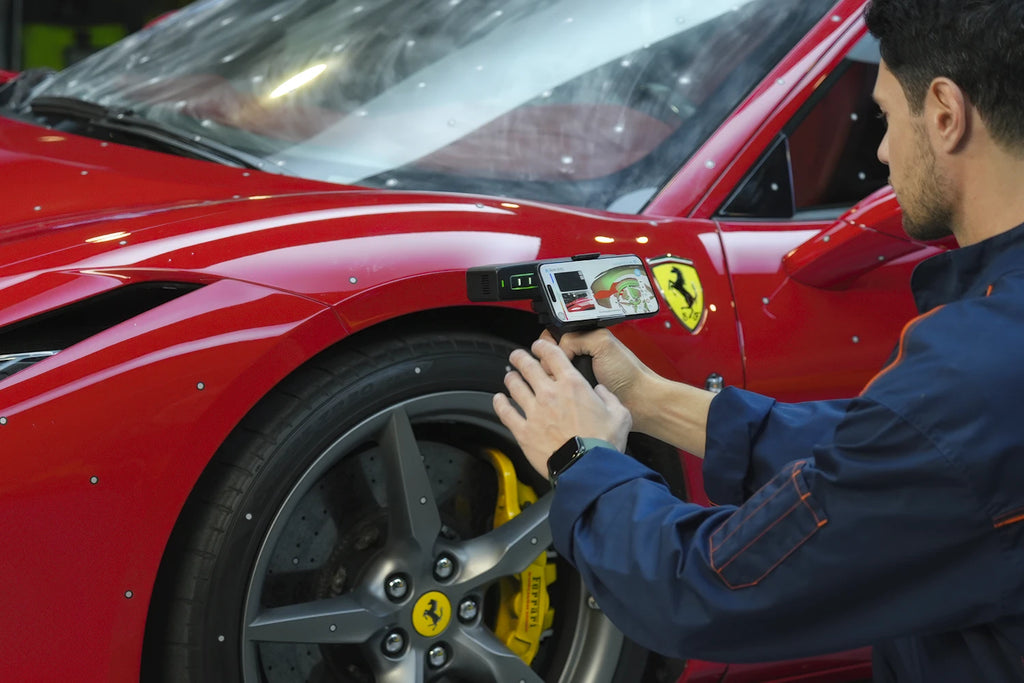

Supports Marker Scanning

With 8 infrared lights,it better tracks marker points, applicable to objects with fewer scanning features. Under marker mode, it will achieve higher accuracy.

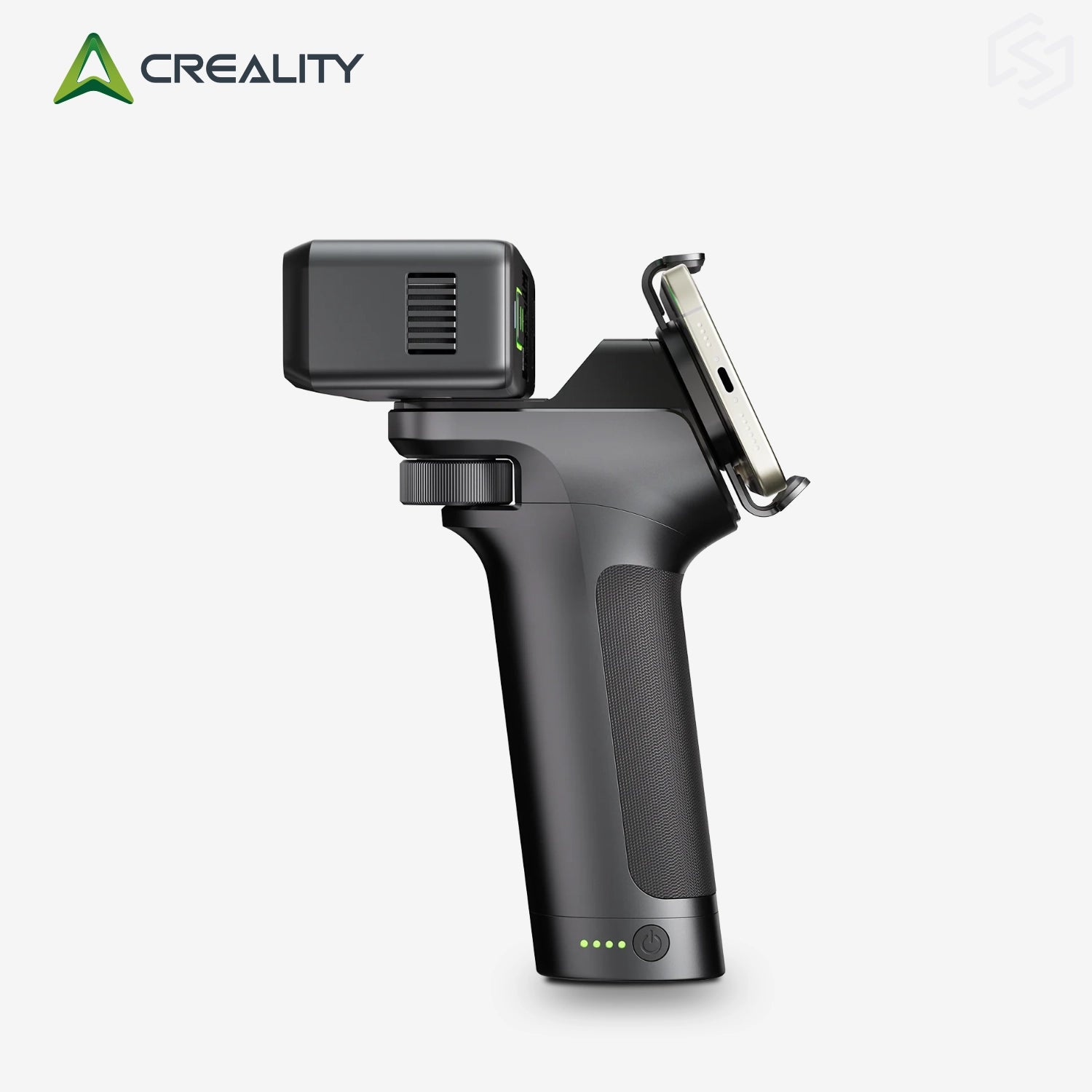

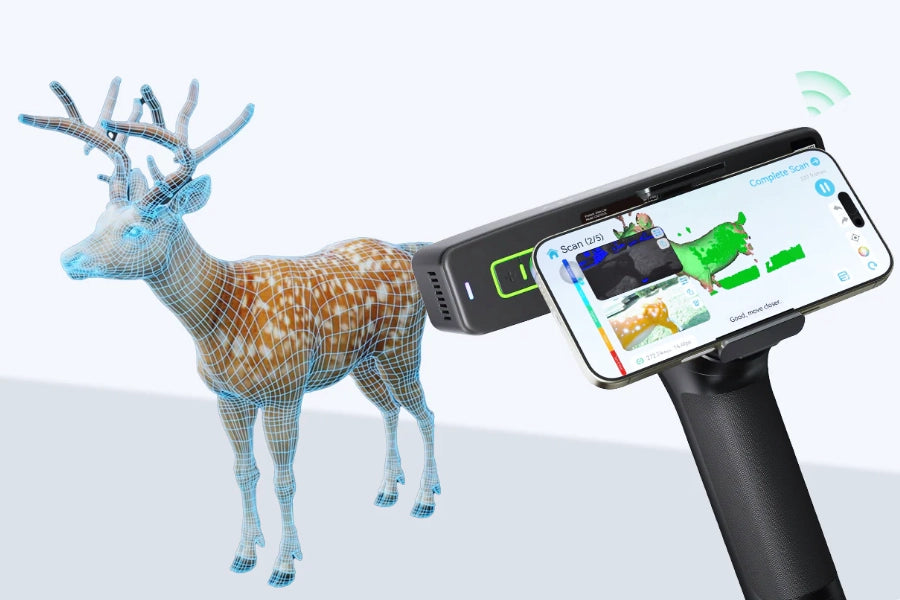

Real-Time Mobile Preview

Otter Lite features a wireless mirroring function that streams scan data to your phone, allowing you to easily preview and monitor scan in real time.

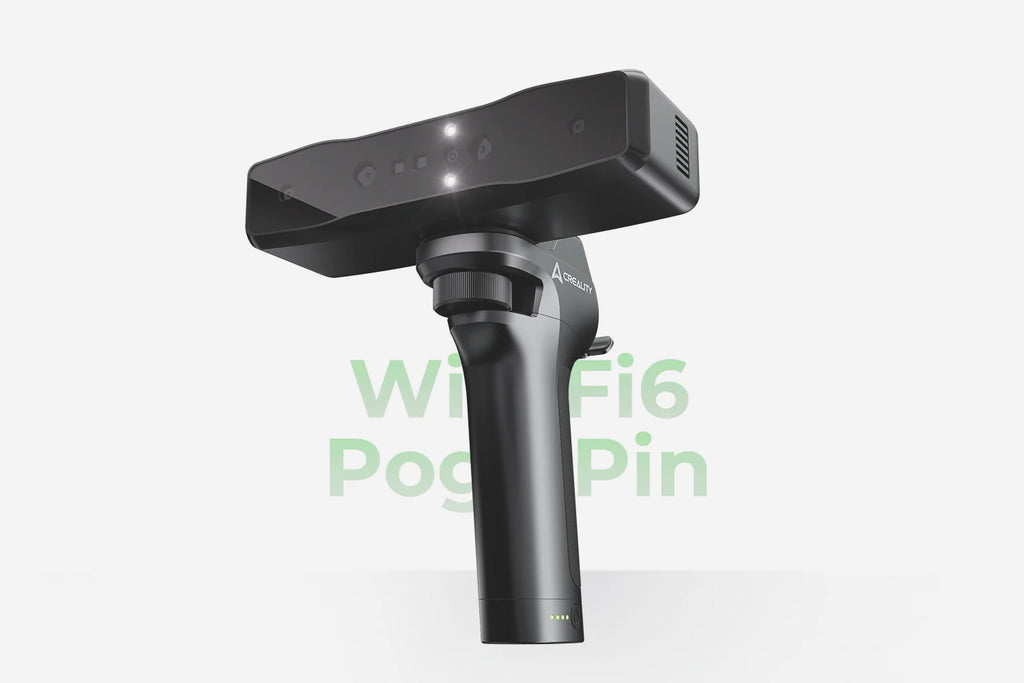

Wi-Fi 6 + Pogo Pin Fast Data Transmission

Equipped with an advanced lossless data compression algorithm, Otter Lite enables fast and seamless scan transfers over Wi‑Fi 6 from the scanner to your computer.

Low Latency: 10 ms
Transmission Rate: 4.7 Gbps

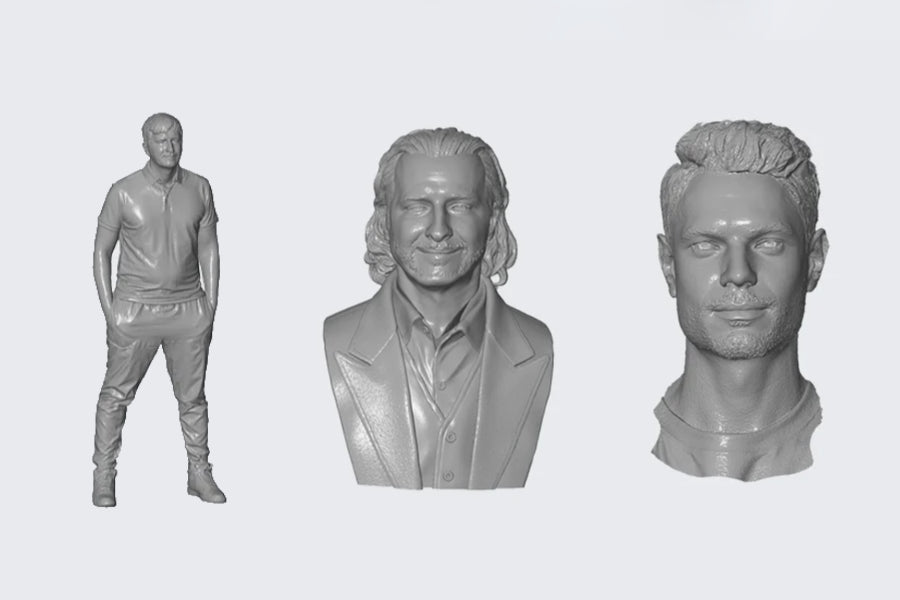

Unique Face & Body Algorithm

Equipped with body & face scanning feature and eye-safe Class 1 infrared technology, the Otter Lite accurately captures intricate facial features and hair details while completing a full-body scan in as little as one minute.

	Otter Lite Basic	Otter Lite	Otter
Accuracy	0.05 mm @ 100 mm¹	0.05 mm @ 100 mm¹	0.02 mm @ 100 mm¹
3D Resolution	0.1 - 2 mm	0.1 - 2 mm	0.05 - 2 mm
Minimum Object Size	20 × 20 × 20 mm	20 × 20 × 20 mm	10 × 10 × 10 mm
Single Capture (Close-Range Mode)	100 mm x 62mm @ 120 mm 160 mm 130 mm @ 250 mm	100 mm x 62mm @ 120 mm 160 mm 130 mm @ 250 mm	100 mm x 62mm @ 120 mm 160 mm 130 mm @ 250 mm
Single Capture (Long-Range Mode)	352 mm x 254 mm @ 300 mm 788 mm x 509 mm @ 600 mm 1460 mm x 1017 mm @ 1200 mm	352 mm x 254 mm @ 300 mm 788 mm x 509 mm @ 600 mm 1460 mm x 1017 mm @ 1200 mm	358 mm x 254 mm @ 300 mm 784 mm x 509 mm @ 600 mm 1350 mm x 840 mm @ 1000 mm
Working Distance	120 mm - 1200 mm	120 mm - 1200 mm	110 mm - 1000 mm
Dimensions	173 mm x 39 mm x 56 mm	173 mm x 39 mm x 56 mm	165 mm x 37 mm x 59 mm
Weight	270 g	300 g	390 g
Wireless Scanning	No (Connects via USB cable)	Yes	Supported in conjunction with wireless scanning accessories
¹ Accuracy is evaluated under laboratory conditions (using a 100 mm sphere pair). Actual results may vary depending on environmental factors such as temperature, vibration, and operating conditions.

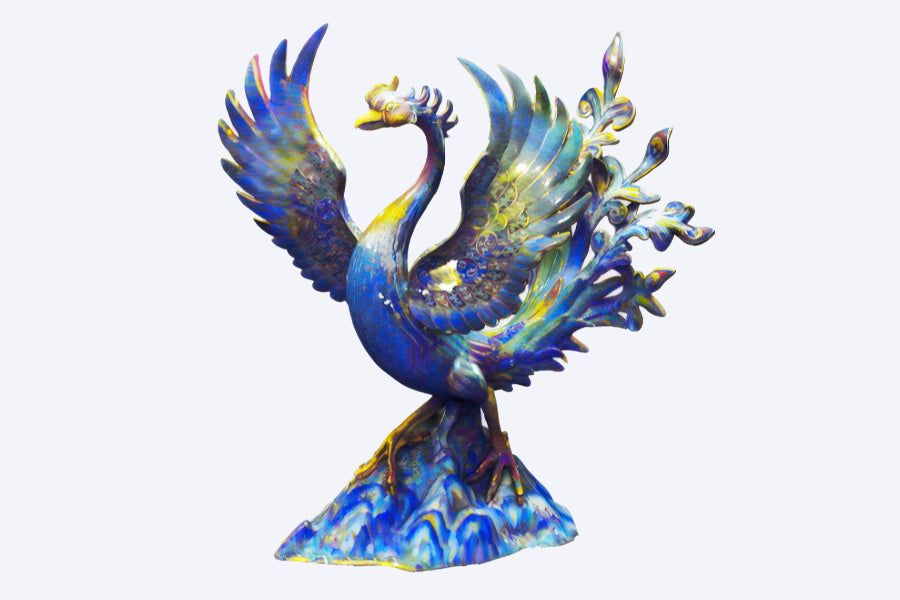

24-bit Full-Color Scanning

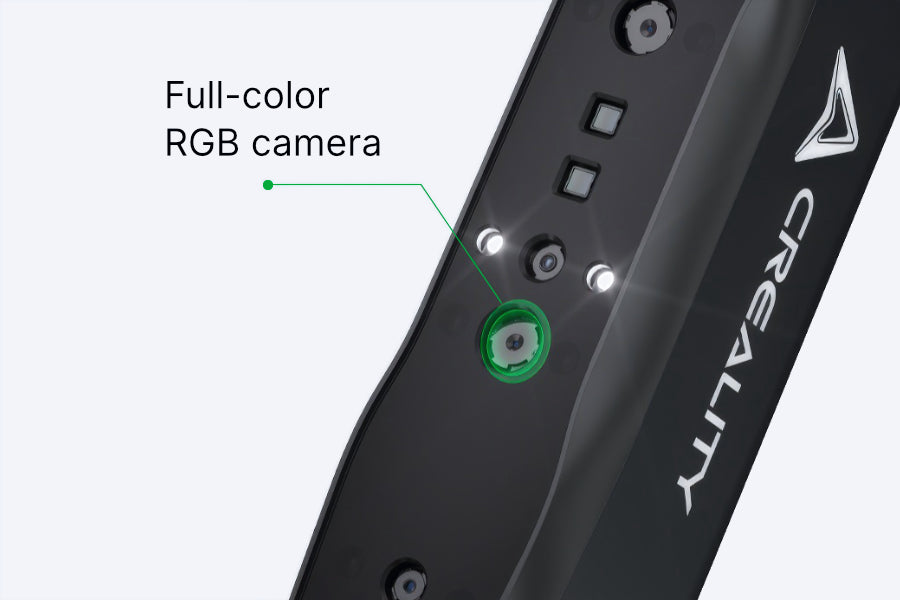

Equipped with a million-pixel full-color RGB camera and an exclusive color mapping algorithm, ensuring exceptional capture of model details and colors.

Clear Capture with Built-in Lights

Even in low-light environments this allows for the most realistic texture effects . Two supplemental LEDs help precisely capture details, faithfully reproducing the color and texture of objects.

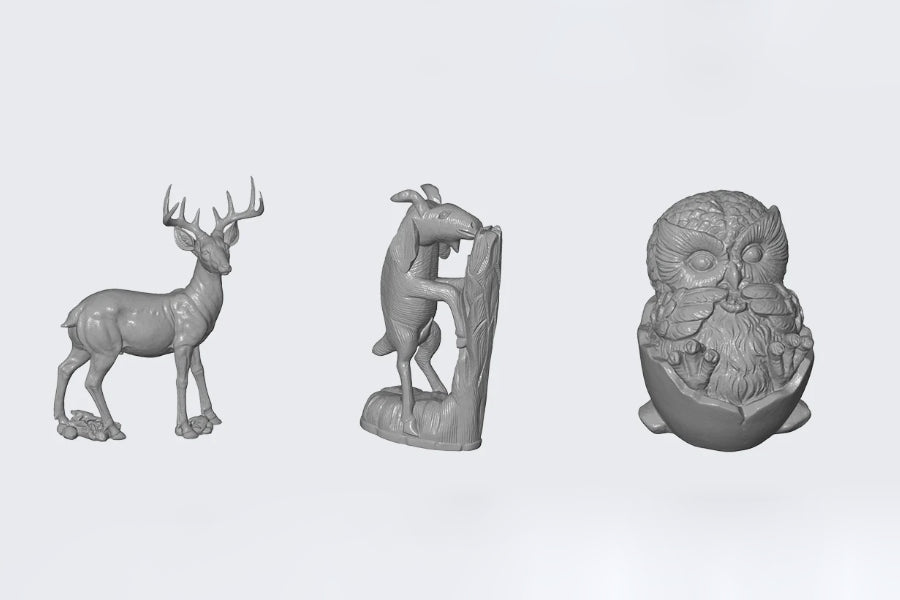

Action Figures

Face & Body

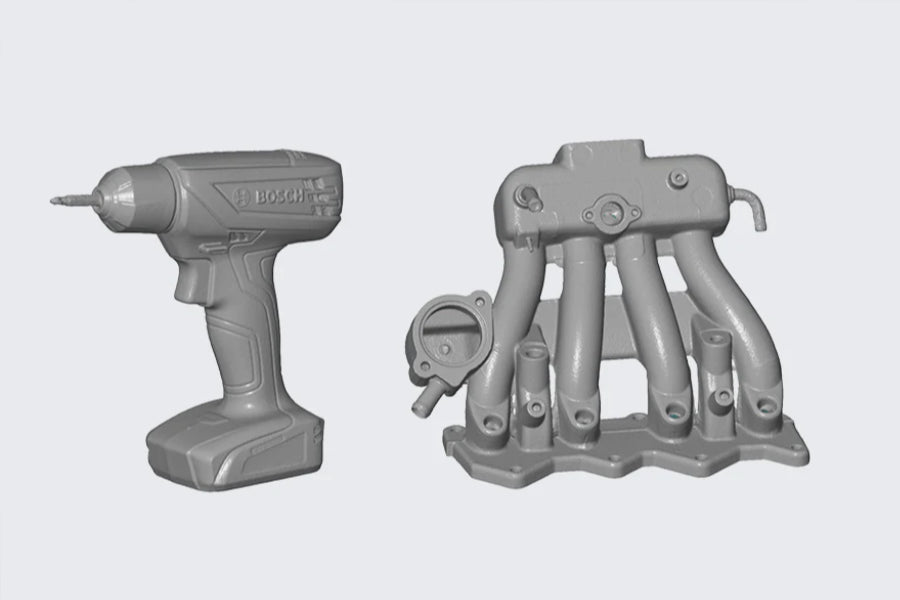

Tools & Mechanical Parts

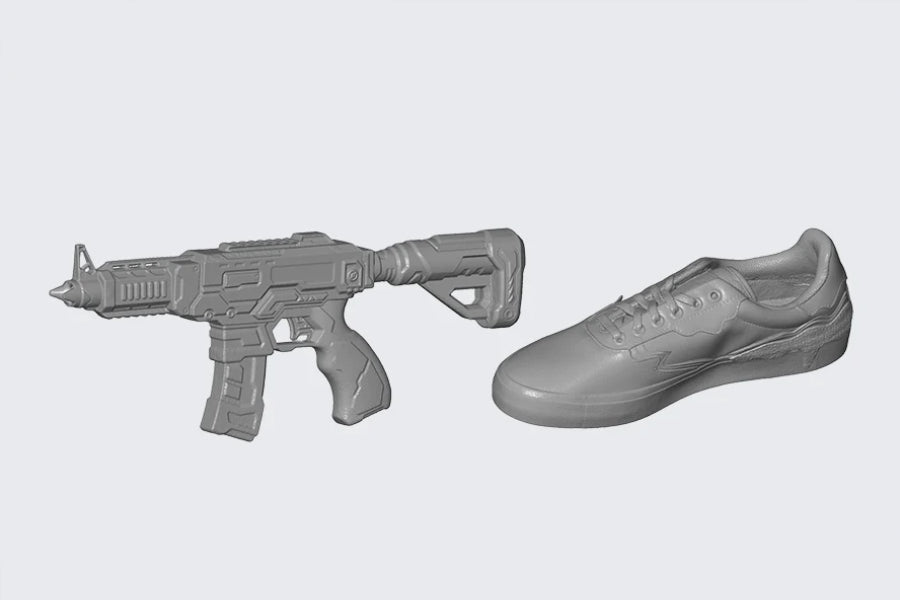

Others

Accuracy	0.05 mm @ 100 mm ¹
3D Resolution	0.1 mm - 2 mm
Scanning Speed	Up to 30 fps
Minimum Scan Volume	20 mm x 20 mm x 20 mm
Single Capture Range	Close range mode 100 mm x 62mm @ 120 mm 160 mm 130 mm @ 250 mm Long range mode 352 mm x 254 mm @ 300 mm 788 mm x 509 mm @ 600 mm 1460 mm x 1017 mm @ 1200 mm
Working Distance	120 mm - 1200 mm
Color Mapping	Yes
Alignment Mode	Marker / geometry / texture
Output Formats	OBJ / STL / PLY
IMU	Yes
Marker Recognition Enhancement	8 NIR LEDs
Color Supplemental Light	2 white LEDs
Laser Safety	Class I (eye safe)
Dimensions	173 × 39 × 56 mm
Weight	Main unit: 300 g Lite bridge: 306 g
Wireless Scanning	Yes
Data Transfer Rate	Up to 30 fps
Data Interface	USB-C / USB 3.0 / USB 2.0
¹ Accuracy is evaluated under laboratory conditions (using a 100 mm sphere pair). Actual results may vary depending on environmental factors such as temperature, vibration, and operating conditions.
