3DMakerpro Lynx 3D Scanner

3DMakerpro Lynx 3D Scanner

$321.30 USD
$459.00 USD $321.30 USD
Sale Sold out

Lynx is an affordable, high-quality 3D scanner for capturing real-world objects into 3D models. The handheld 3D scanner digitizes large objects with a single capture range of 250 × 400mm, which is 200% larger than traditional mid-format scanners.

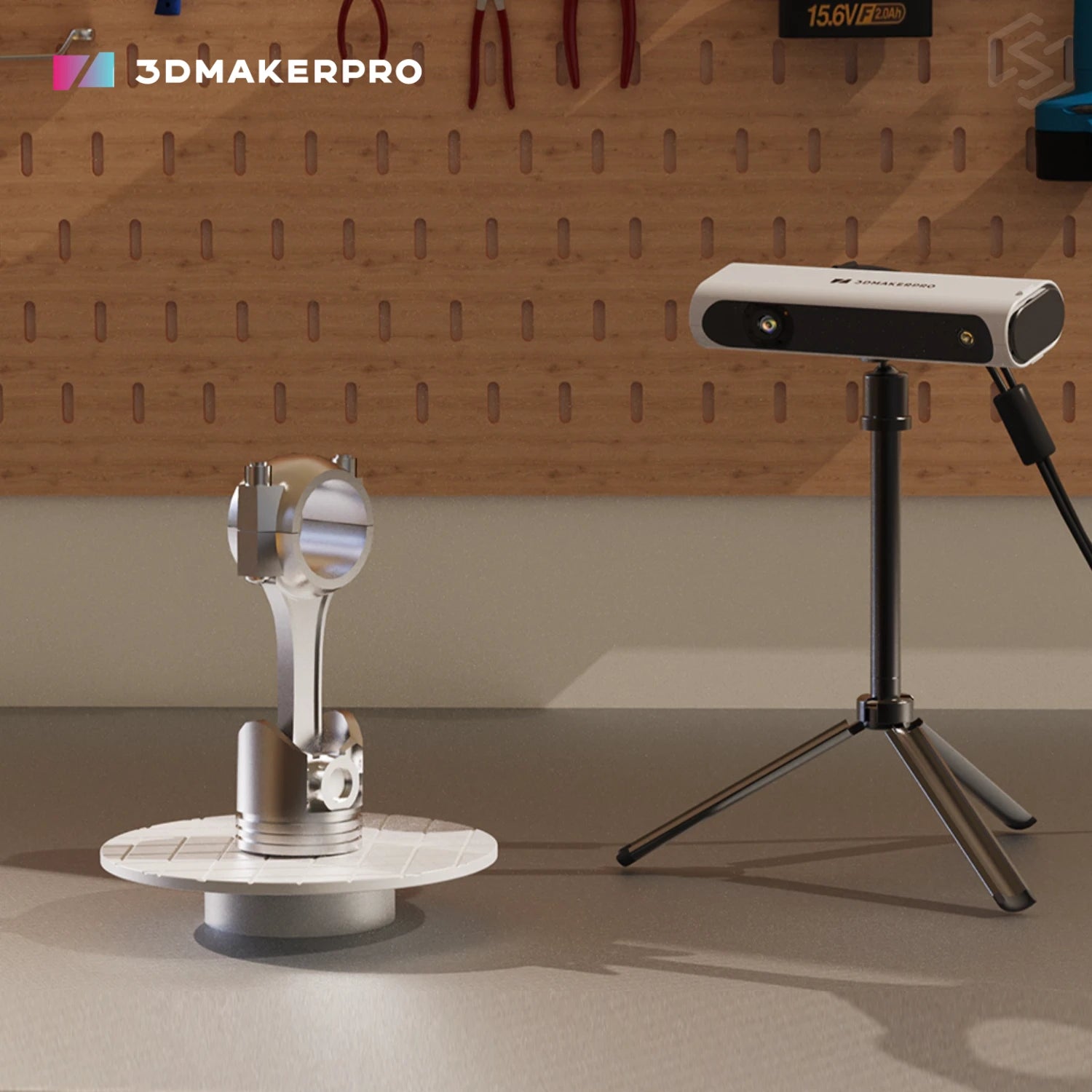

  • Ability to convert it into a desktop 3D scanner with a tripod (Luxury and Premium bundle)
  • Standard and Premium packages capture textureless 3D models in grayscale. You will need the color kit to capture color models (included in the Luxury bundle).
Free AESUB Orange

Exclusive Limited-Time Deal

Get a free can of AESUB Orange vanishing 3D scanning spray (a $42 USD value) with the purchase of a 3DMakerpro 3D scanner.
Add scanner to cart to receive the free item automatically.

Excludes Raven, Eagle, and Hawk LiDAR Scanners.

Accessory Package

3DMakerpro

JMStudio 3D Scanning Software

Scan quality depends heavily on software, which is why our proprietary JMStudio is essential. Years of continuous iteration have resulted in enhanced scanning and editing capabilities. Support for 8 languages and lifetime free OTA updates.

Windows | MacOS: JMStudio is 3DMakerpro's exclusive software, handling multi-mode data acquisition, high-def preview, texture mapping, and 3D model generation for scanning equipment.

Android | iOS for Mobile: JMStudio has launched a mobile version as part of the 3DMakerpro lightweight scanning plan. Paired with Connect, you can now scan and obtain any 3D model you desire, anywhere.

JMStudio supports exporting files in formats like OBJ, STL, ASC, empowering you to edit, refine, render, or print your scans using your preferred design software.

System Requirements

  • Output format: OBJ/STL/ASC
  • Compatible system: Windows10/11 64bit, MacOS12/13
  • Compatible mobile: Android 10.0 or later, iOS 15.0 or later (with Connect - sold separately)
  • Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
  • Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM

What's In the Box

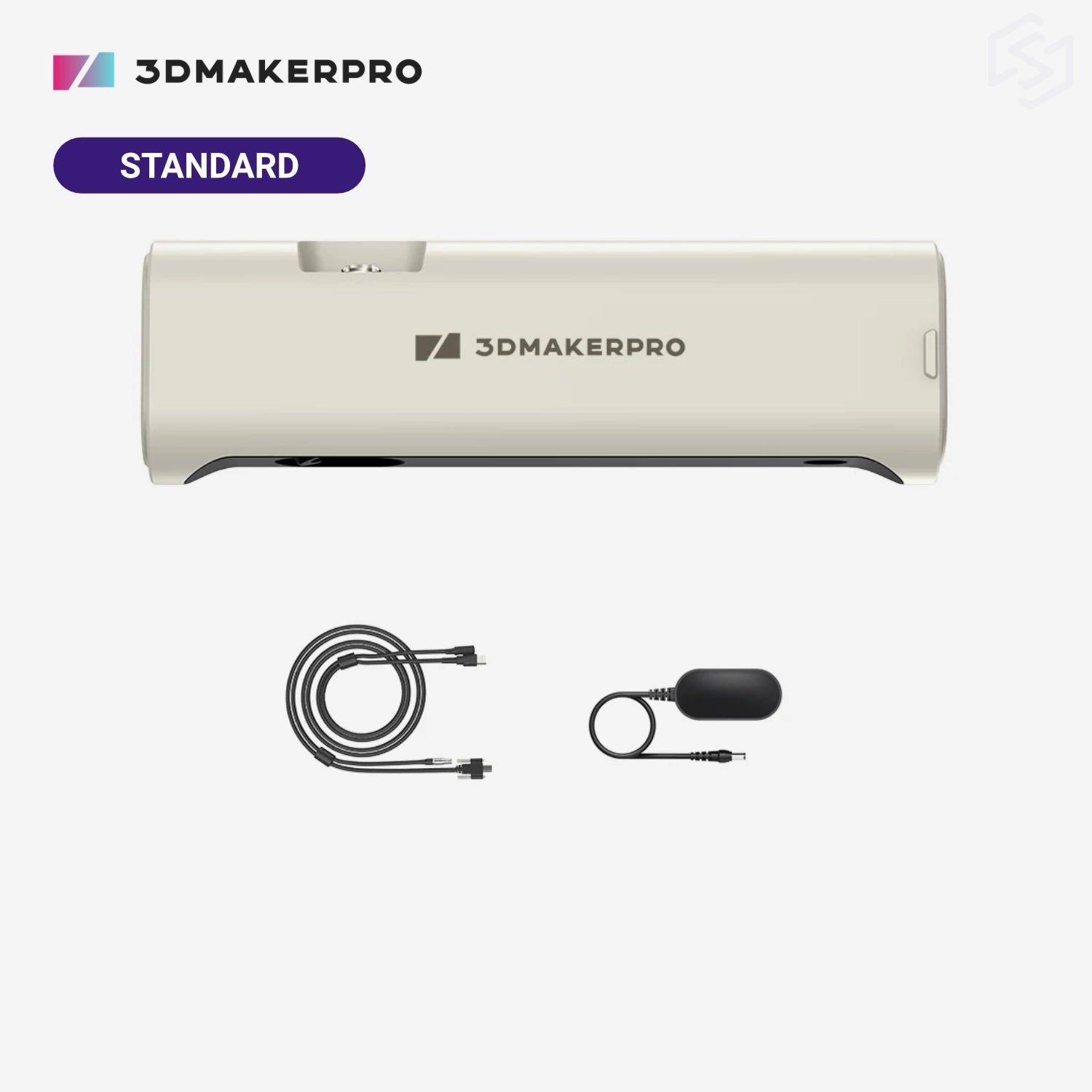

Standard Package
  • Lynx 3D Scanner
  • Power Cord
  • Data Cable

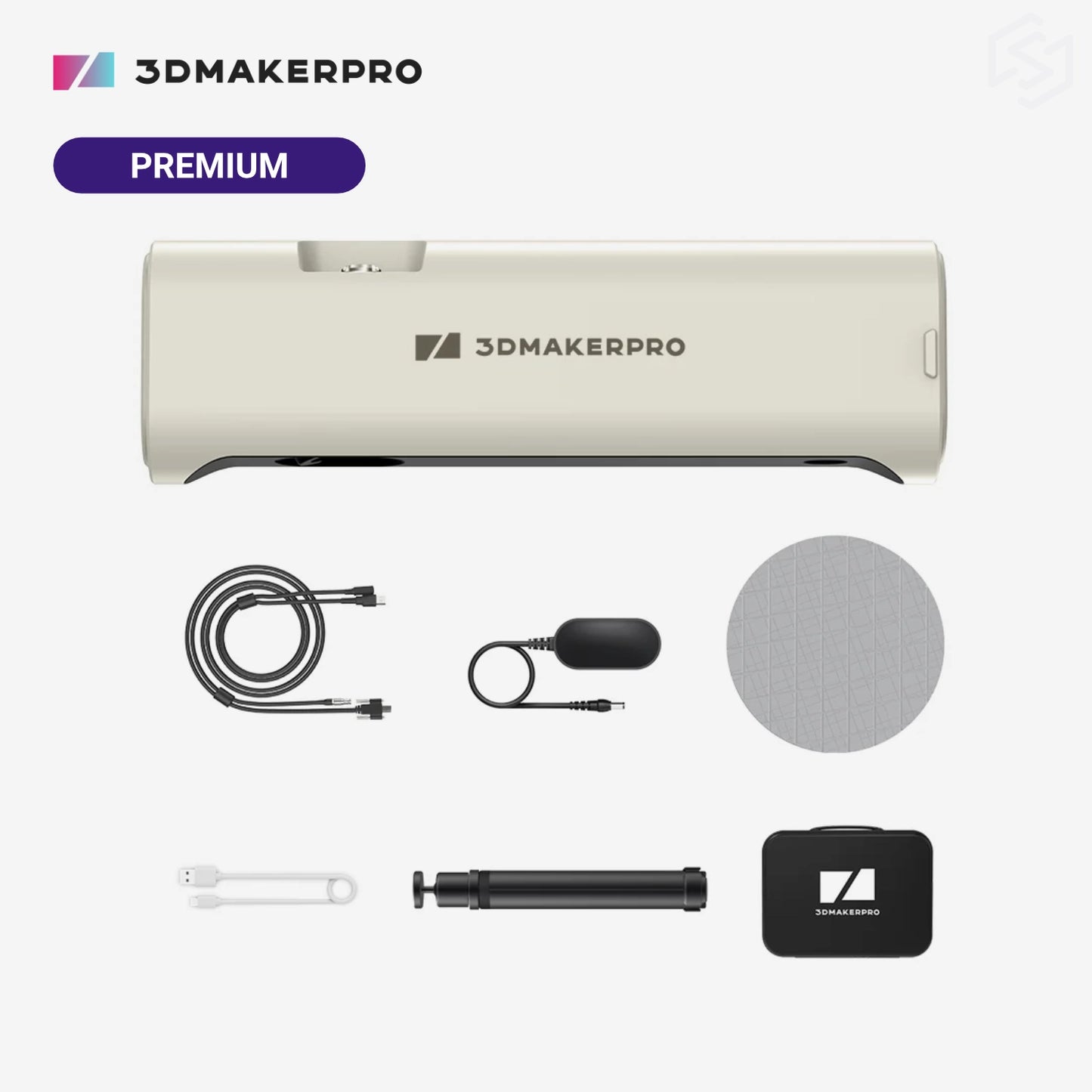

Premium Package
  • Everything in the Standard Package
  • Tripod
  • Turntable Kit
  • Suitcase

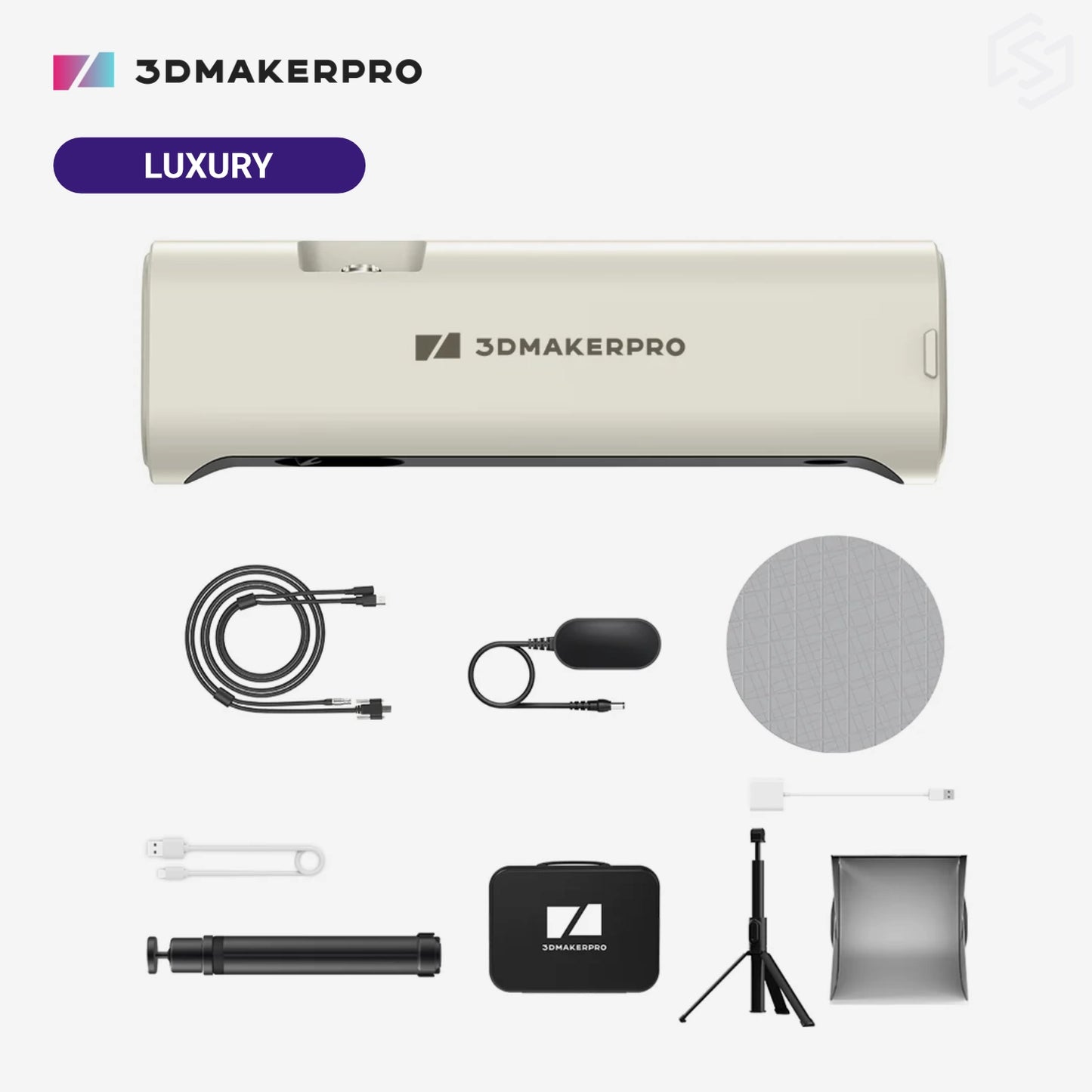

Luxury Package
  • Everything in the Premium Package
  • Color Kit
View full details

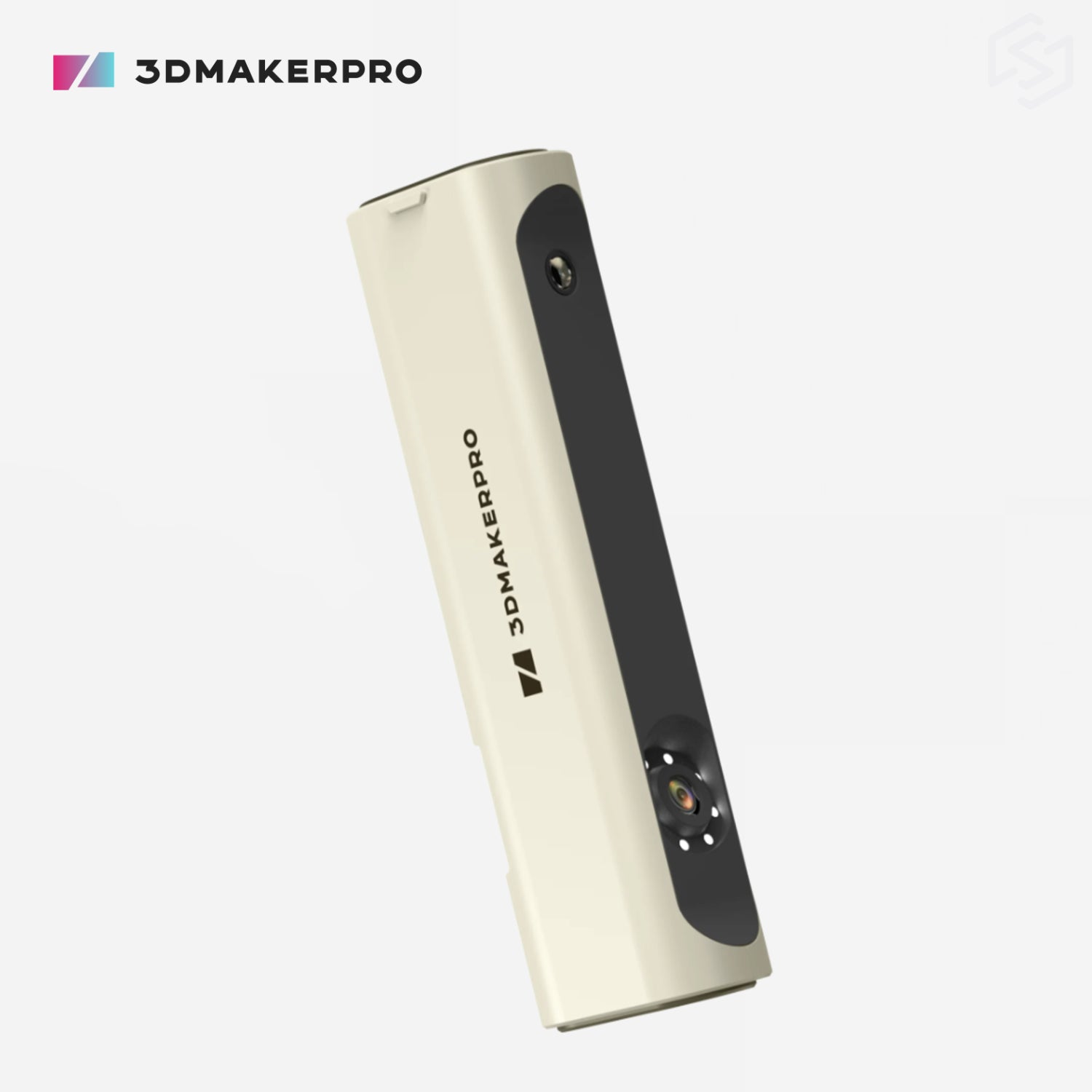

Meet the Lynx 3D Scanner

Scan larger objects with ease. Lynx's optical stabilizer with advanced visual tracking reduces the risk of misalignment, no markers required.

Up to 0.10 mm Accuracy

Lynx captures precise dimensional data, helping ensure reliable and consistent scan results across a wide range of object sizes.

Up to 0.3 mm Resolution

Lynx helps you create precise and detailed point clouds, achieving a high level of object reproduction suitable for art, design, and industrial purposes.

250×400 mm Single Capture

With its large scanning volume, Lynx can scan objects ranging from 100 to 2000 mm in size.

Features

With Lynx, 3D scanning medium to large objects such as human bodies, furniture, automotive parts, and sculptures is a breeze. You can capture complete, detailed models that showcase every intricacy in just minutes.

  • Great Value for the Price: With 0.10mm accuracy and 0.30mm resolution, Lynx creates precise and detailed point clouds, achieving a high level of object reproduction.
  • Get Results Fast: Experience lightning-fast scanning speed with up to 2,000,000 points captured per second.
  • Don't Need High-Powered Computer: Greatly enhance the ease of scanning with efficient software algorithms, while keeping the PC hardware requirements low.

Scan Samples

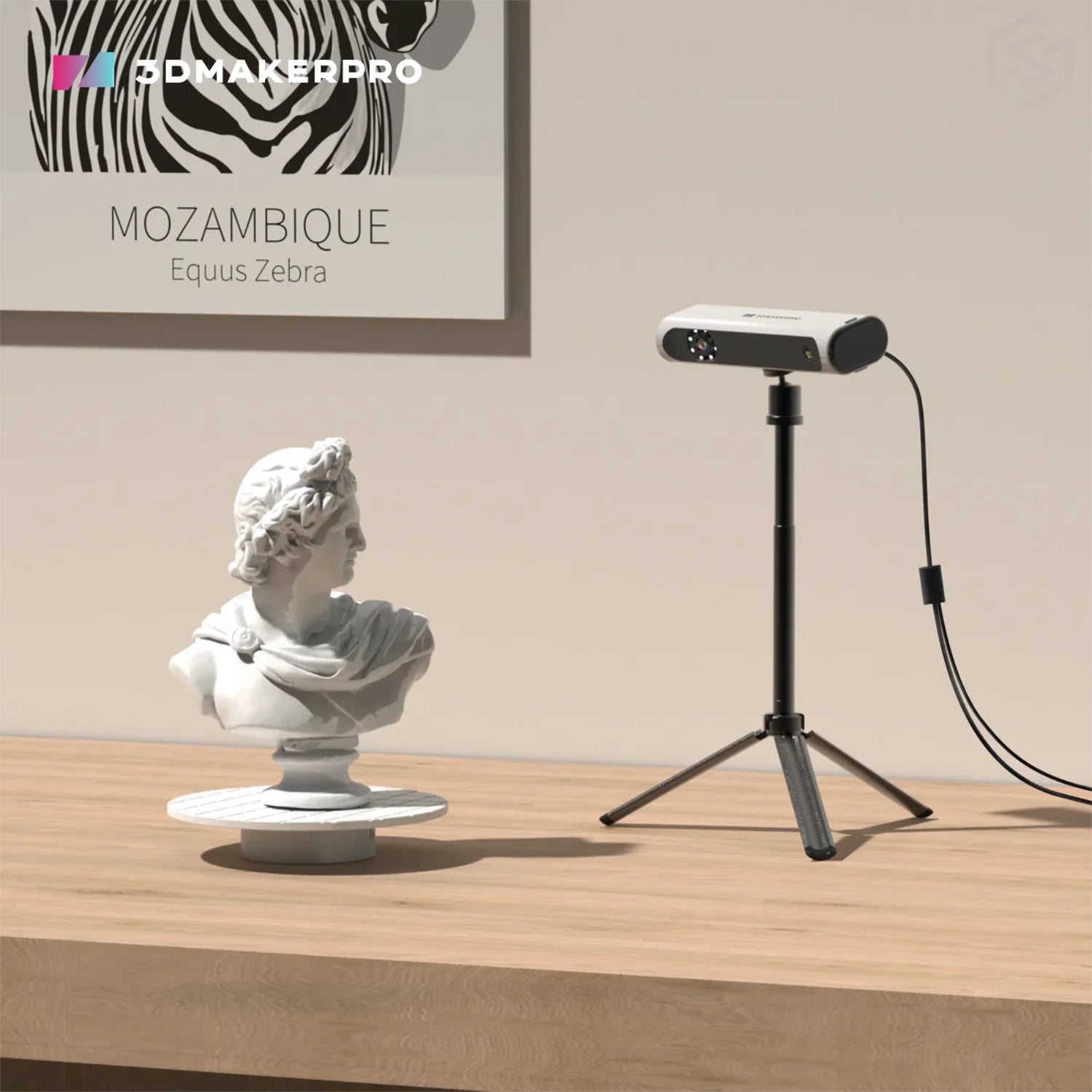

Sculpture

Technical Specification

* provided by 3DMakerpro

Accuracy 0.10 mm
Resolution 0.30 mm
Frame Rate 10 fps
Tracking Mode Visual Tracking
Working Distance 400–900 mm
Single Capture Range 250 × 400 mm
Typical Object Sizes 100–2000 mm
Light Source NIR
Color Texture Extended Support
USB Interface USB 2.0
Dimensions 244 × 75 × 48 mm
Weight 800 g

Frequently Asked Questions

What is the difference between Lynx and Mole?

The Lynx is a large-format scanner with a single capture range that is 200% larger than the Mole. Using the same scanning frame rate, the Lynx can scan an area several times larger than Mole.

Can the Lynx scan an entire car?

Yes, it is possible to scan an entire car with Lynx, but it requires certain 3D scanning techniques and an expert level of experience to get great results. If you want to scan specific car parts such as seats, bumpers, hoods, or wheels, it can be easily accomplished.

What object size is suitable for scanning with the Lynx?

Lynx is suitable for scanning objects with recommended sizes ranging from 100 mm to 2000 mm. Larger objects may pose greater challenges, although theoretically, Lynx can scan objects as large as 5000 mm.
