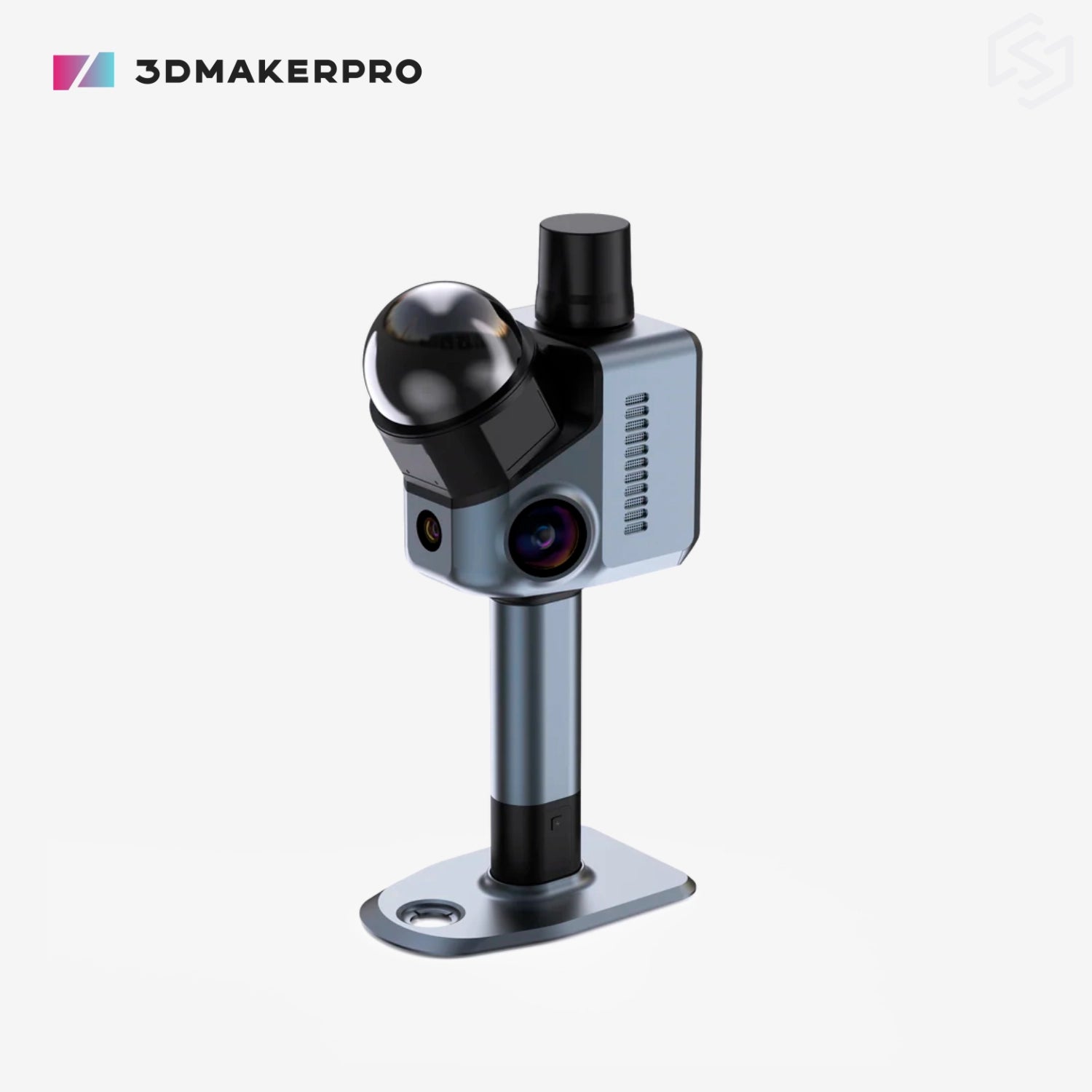

3DMakerpro Hawk LiDAR-Based Spatial 3D Scanner - Commercial Solution

3DMakerpro Hawk LiDAR-Based Spatial 3D Scanner - Commercial Solution

$7,600.00 USD
$9,500.00 USD $7,600.00 USD
Sale Sold out

3DMakerpro Hawk is a next-generation LiDAR scanner built for professional field workflows, delivering industrial-grade accuracy, durability, and portability. Powered by a hybrid solid-state LiDAR engine, enhanced dual cameras, and IP65-rated protection, Hawk provides robust, on-site performance for engineering, surveying, construction, and digital twin applications.

3DMakerpro

Product Brochure

System Requirements

Configuration
  • 8 Cores 2.4GHz, 32GB RAM (supports TF card expansion)
Recommended Configuration
  • Processor: Intel Core i7
  • Memory: 64GB RAM
  • Graphics Card: NVIDIA RTX 4060, 16GB VRAM
Minimum Configuration
  • Processor: Intel Core i7
  • Memory: 32GB RAM
  • Graphics Card: NVIDIA RTX 3060, 12GB VRAM
Note
  • Gaussian Splatting is only supported on NVIDIA GPUs.

Output Format

  • 3D Color Point Cloud PLY
  • 3D Gaussian Splatting PLY
  • 3D Colored Polygonal Model OBJ
View full details

Meet the Hawk LiDAR Scanner

Powered by a hybrid solid-state LiDAR engine, enhanced dual cameras, and IP65 protection, Hawk provides the rugged, field-ready reliability demanded by engineering, surveying, construction, and digital-twin workflows.

1.5 cm High Accuracy

Built for demanding field measurements, the Hawk achieves sub-centimeter accuracy within 10 meters.

Speed at 480,000 pts/sec

Captures dense, detailed point clouds at double the rate of standard LiDAR scanners.

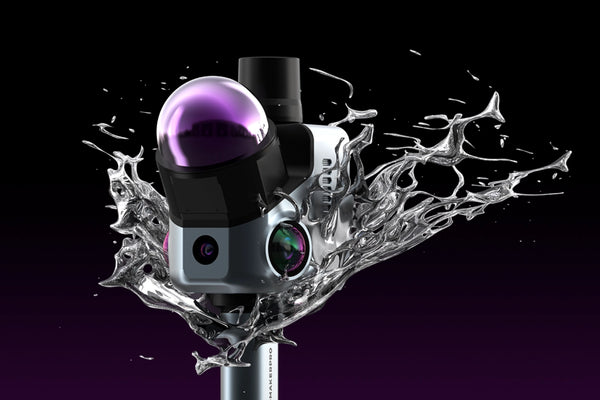

IP65 Metal Design

Built for harsh environments — water-resistant, dustproof, and impact-tolerant.

Why Choose the Hawk LiDAR?

Precision and Speed

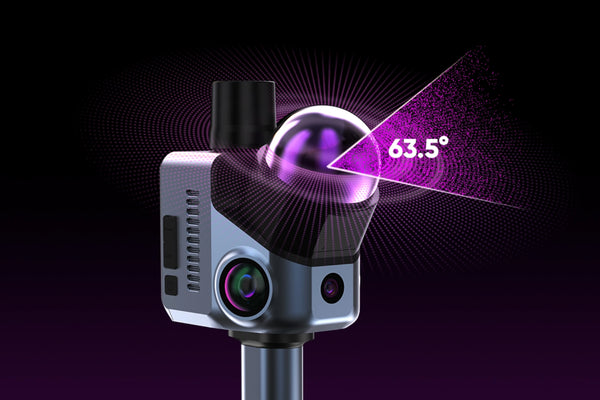

Hawk delivers exceptional precision up to 1.5 cm at 10 meters and captures dense point clouds at 480,000 points/sec, with a wide 63.5° vertical field that minimizes blind spots.

Rugged Field Design

An IP65-rated metal body with excellent heat dissipation and water resistance ensures reliable performance on rugged job sites, all in a lightweight 900 g package.

Advanced Imaging

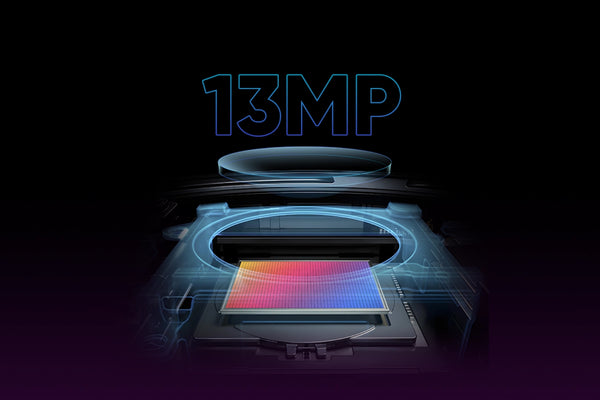

Dual 13 MP 1-inch cameras paired with NIR visual tracking capture realistic textures and support stable positioning even in challenging lighting conditions.

Extended Power and Connectivity

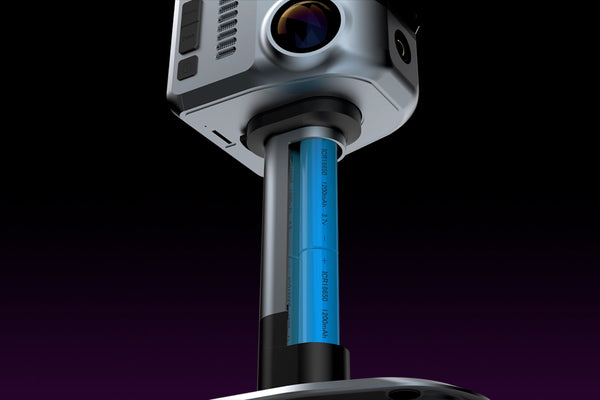

12,000 mAh battery supports one hour of operation, with USB-C and Wi-Fi 5 for seamless data transfer.

Scan Samples

The post-processing software that is included with the scanner allows you to refine and edit point cloud data, with output formats including PLY, PNG+OBJ, and Gaussian-Splatting PLY (completely free of charge for non-commercial visual sharing).

Badminton Facility

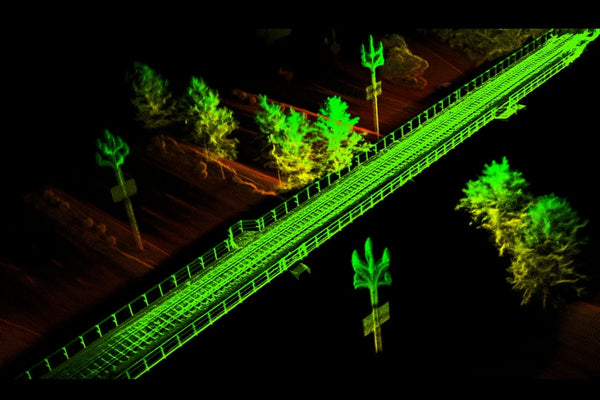

Railway Tracks

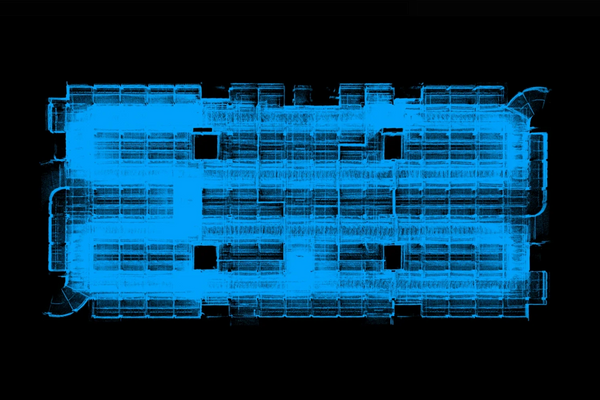

Underground Parking Lot

Technical Specification

* provided by 3DMakerpro

Hawk LiDAR Scanner
Accuracy 1.5 cm @ 10 m; 3 cm @ 20 m; 5 cm @ 40 m
Scan Radius 40–70m (measured at >10% or >80% reflectivity)
Scan Range 80–140m
Scan Angle Horizontal 360°, Vertical 63.5°
Point Cloud Frequency 484,000 points/second
Laser Light Source 905 nm
Eye Safety Level Class 1 (IEC60825-1:2014) – Eye safe
Color Texture
  • 2 x 13MP 1-inch sensor
  • Single-camera NIR visual tracking system
Data Interface 2 x USB Type-C
Network Support Wi-Fi 5
Screen 3.9" AMOLED
Output Formats 3D Color Point Cloud (PLY);
3D Gaussian Splatting (PLY);
3D Colored Polygonal Model (OBJ);
3D Panoramic Tour Data (OBJ)
Built-in Battery 12,000 mAh (supports 1 hour of work; external power supply supported)
Dimensions 120 × 145 × 85 mm
Weight 900 g
