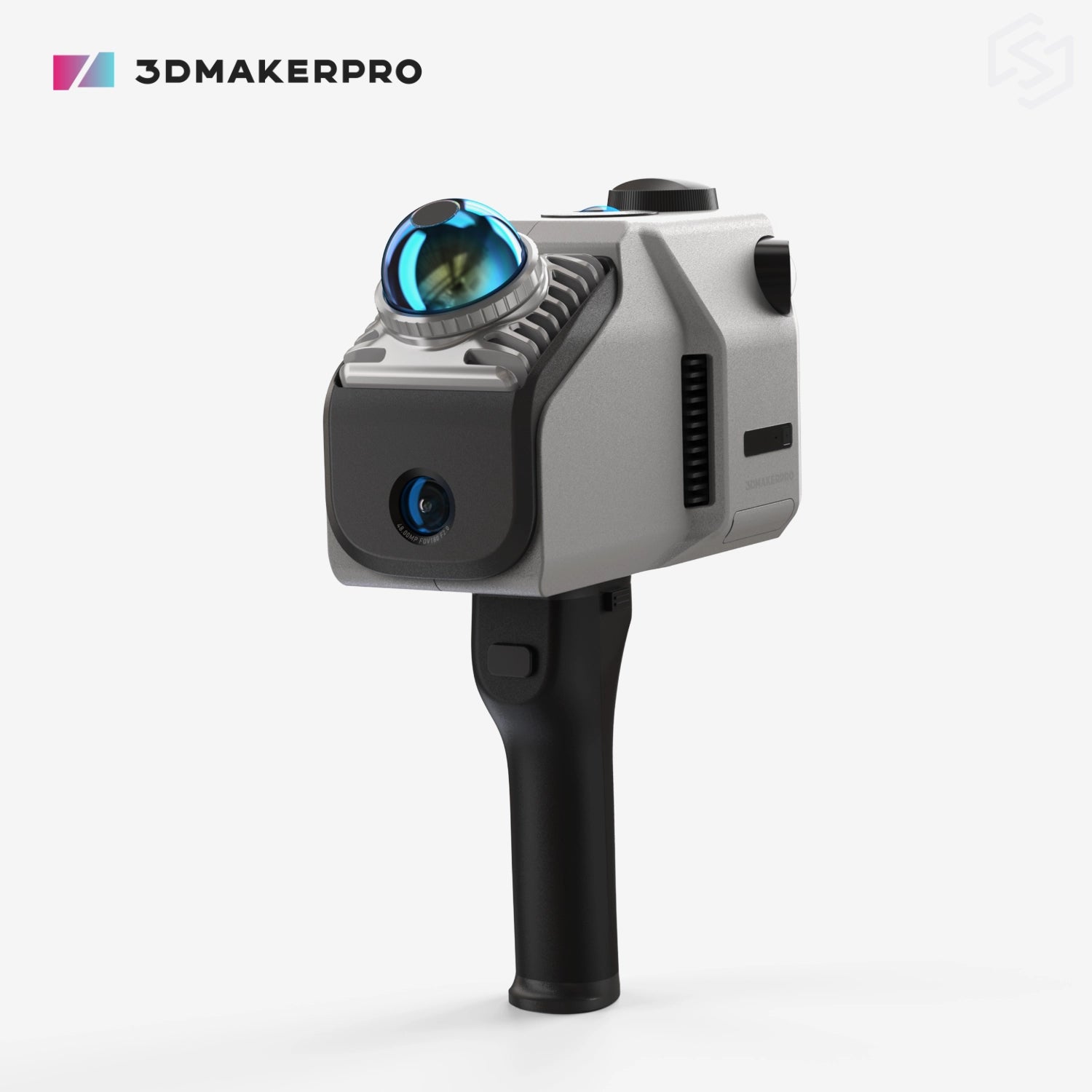

3DMakerpro Eagle LiDAR 3D Scanner

$3,198.40 USD

~~$3,998.00 USD~~ $3,198.40 USD

Sale Sold out

The 3DMakerpro Eagle LiDAR Scanner delivers all-in-one, high-precision LiDAR scanning with wide-area coverage and up to 8K HDR imaging for vivid colors, enabling fast and detailed large-scale 3D scene capture in just minutes. 48MP camera delivers fisheye detail—4 cameras for Max and 1 camera for Standard.

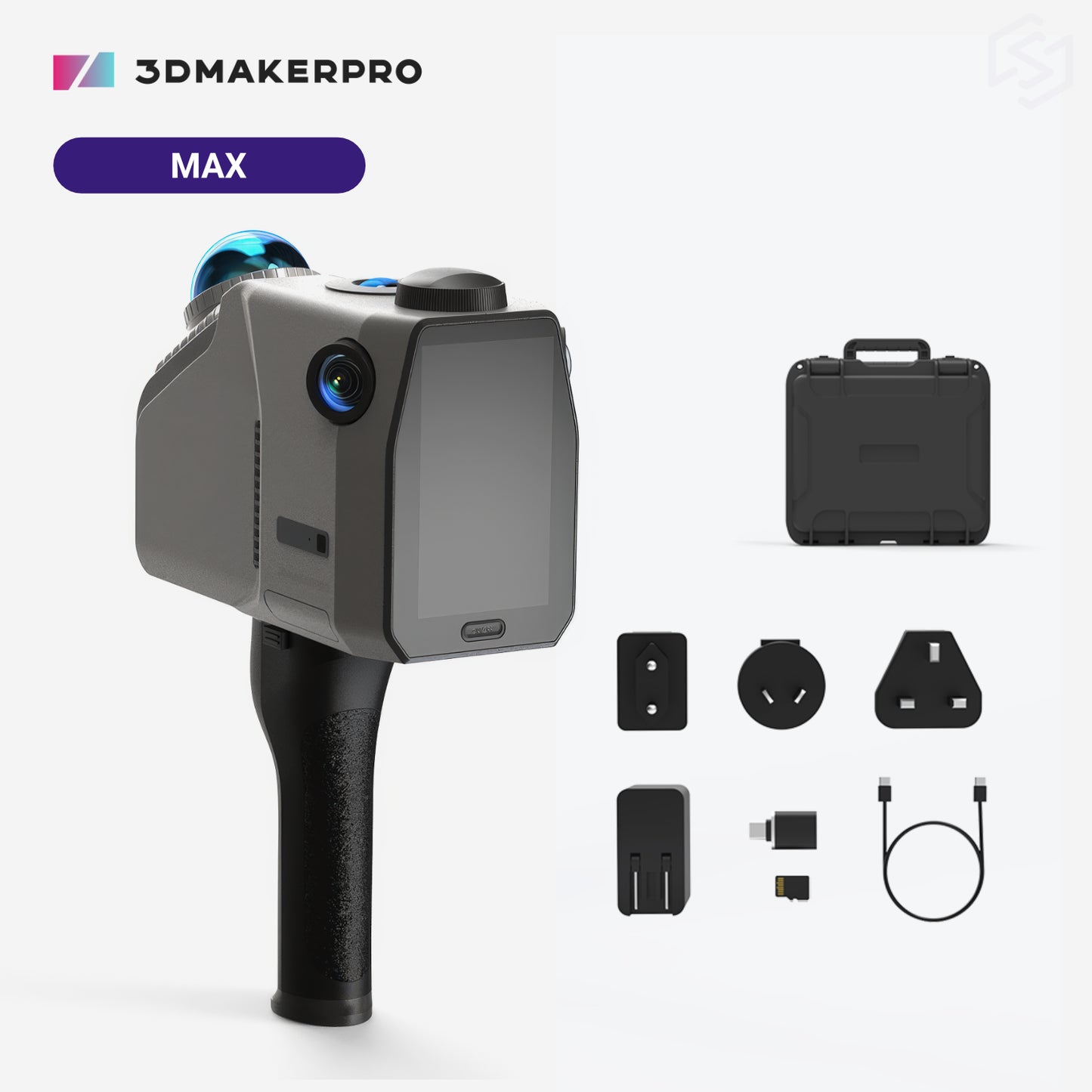

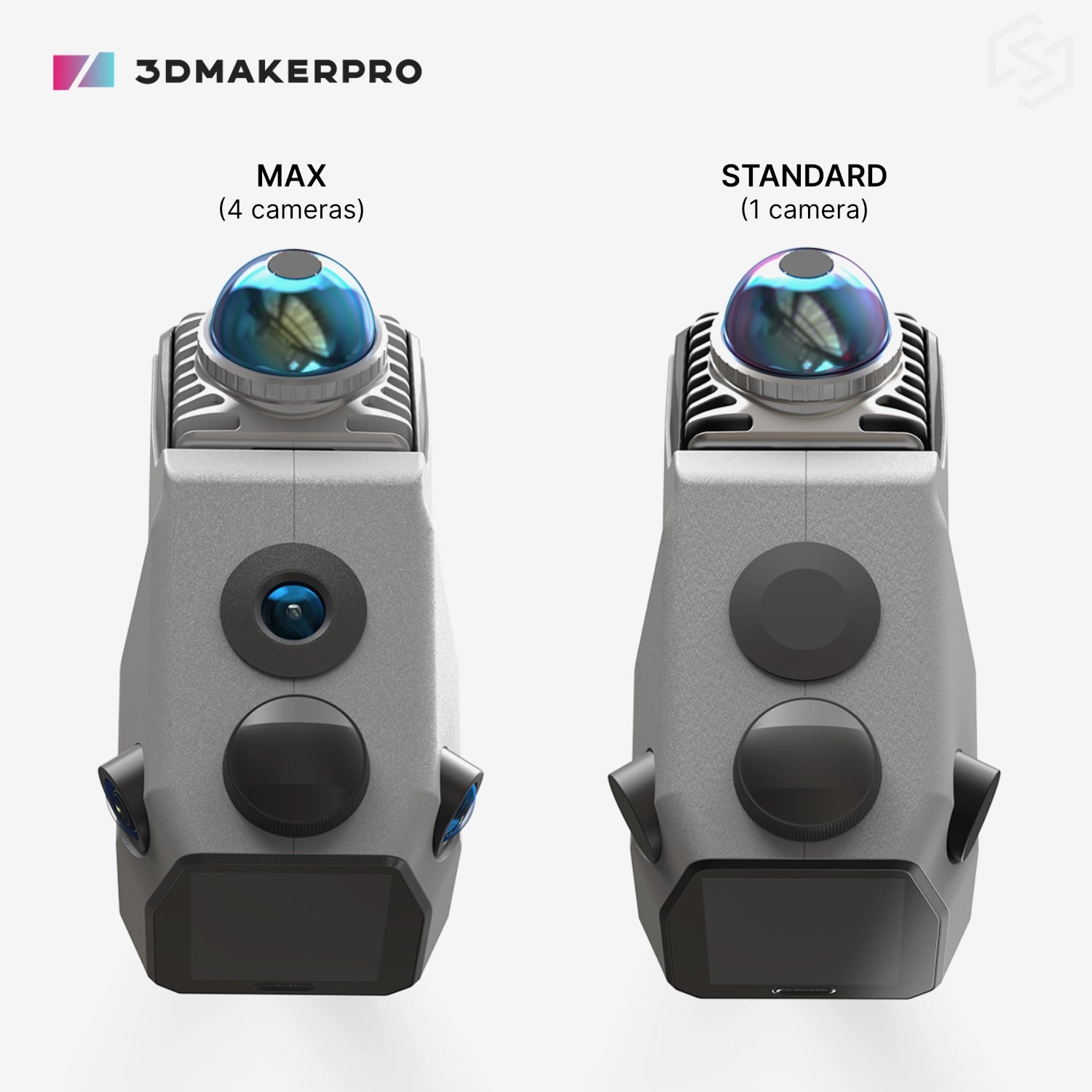

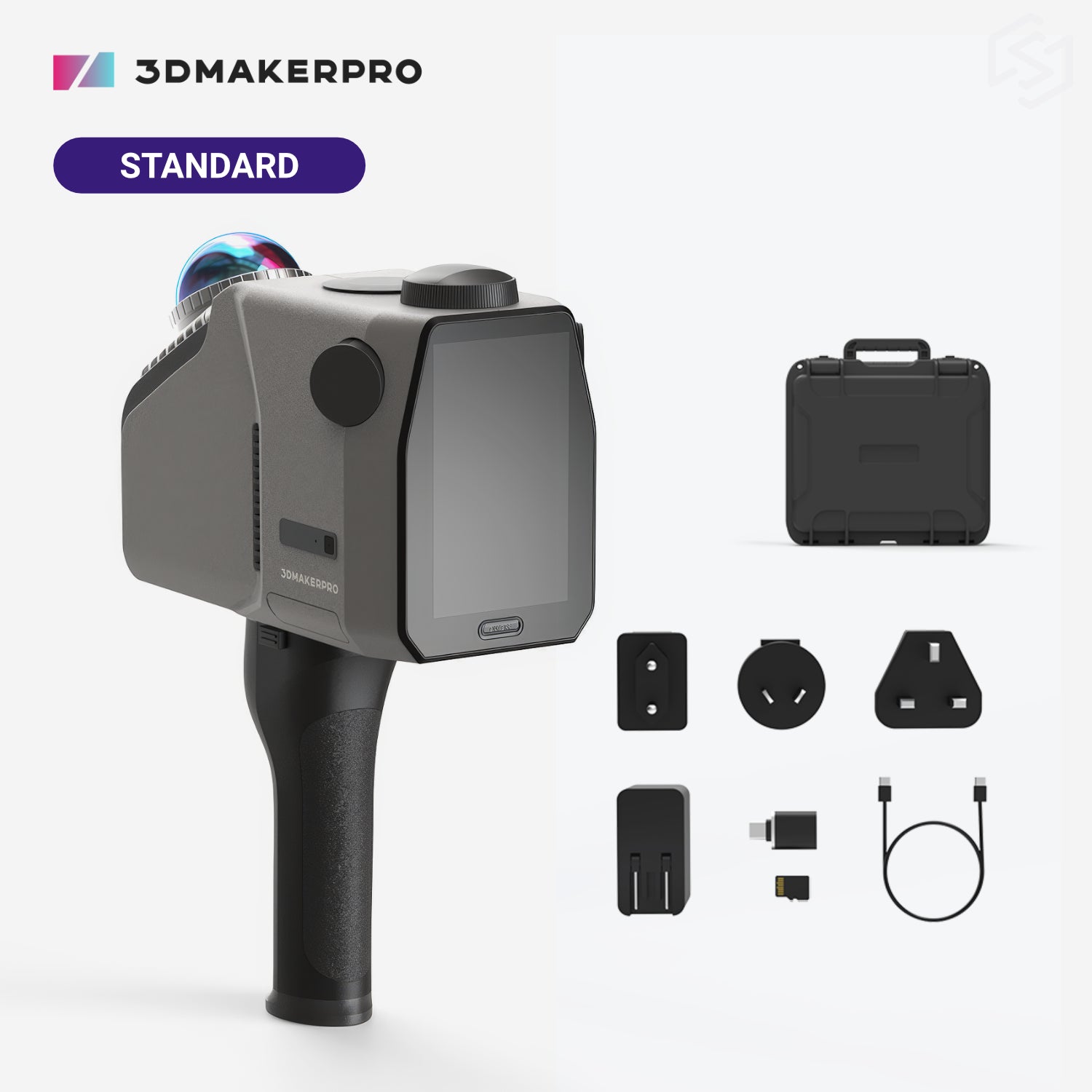

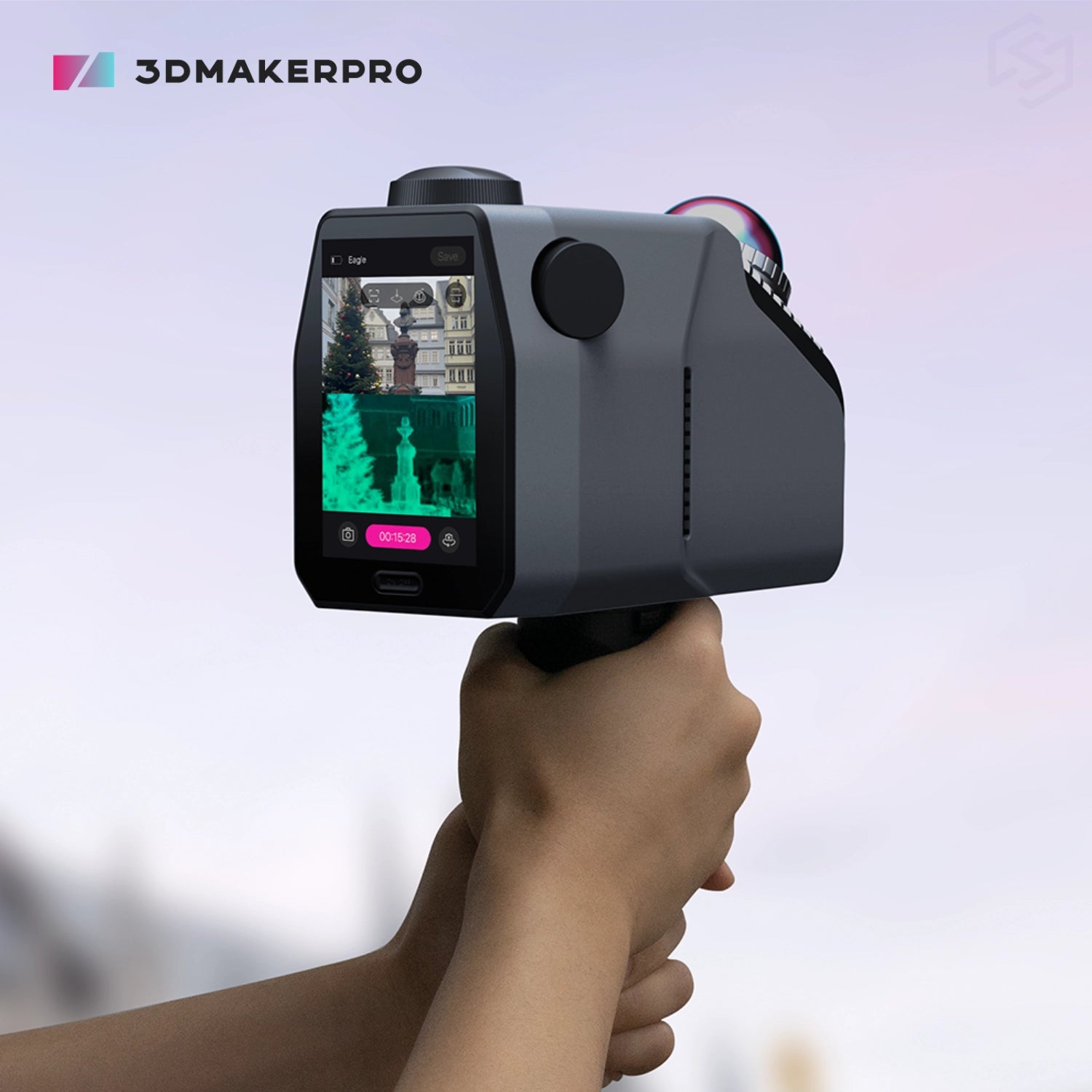

Version Standard (1 camera) Max (4 cameras)

3DMakerpro

Product Brochure

Eagle product brochure

System Requirements

Configuration

8 Cores @ 2.4GHz, 32GB (TF card expansion supported)

Recommended Configuration

Processor: Intel Core i7
Memory: 64GB RAM
Graphics Card: NVIDIA RTX 4060, 16GB VRAM

Minimum Configuration

Processor: Intel Core i7
Memory: 32GB RAM
Graphics Card: NVIDIA RTX 3060, 12GB VRAM

Note

Gaussian Splatting is only supported on NVIDIA GPUs.

Output Format

3D Color Point Cloud (PLY)
3D Gaussian Splatting (PLY)
3D Colored Polygonal Model (OBJ)
3D Panoramic Tour Data (OBJ)

View full details

70 Meters Scanning Radius

Provides a scanning radius of up to 70 meters under 80% reflectivity conditions.

Up to 2 cm Accuracy

Achieves scanning accuracy of up to 2 cm at a 10-meter distance.

8K HDR Imaging

Outputs 8K HDR imaging for vivid colors and dynamic range.

High-Precision, Wide-Range Scanning

Powered by an advanced LiDAR engine, Eagle captures expansive spaces at ultra-fast speeds, turning buildings and entire streets into professional-grade 3D models in just minutes.

Ultra-Wide Coverage Angle

Eagle’s LiDAR offers a 360°×59° field of view, delivering 30% more coverage than typical scanners. Just one simple rotation is enough to capture an entire room.

3D Gaussian Splatting

Eagle converts photos into realistic 3D scenes using Gaussian Splatting, producing high-quality, Unreal Engine–compatible content for rapid environment creation.

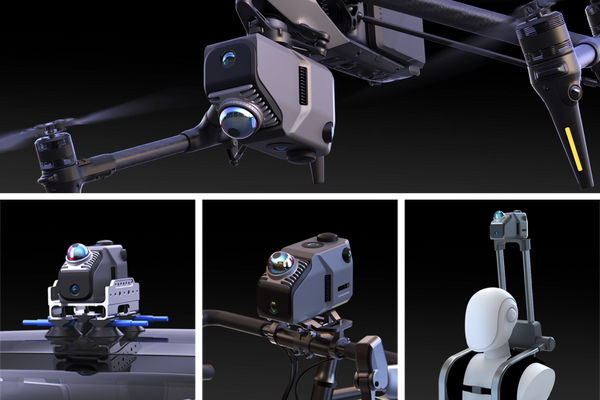

Adaptable to Various Platforms and Vehicles

Eagle captures up to 200,000 points per second, preserving data quality even at speeds of 20 km/h, supporting dynamic operations across different vehicles.

Post-Processing Software for 3D Point Cloud Editing

The post-processing software that is included with the scanner allows you to refine and edit point cloud data, with output formats including PLY, PNG+OBJ, and Gaussian-Splatting PLY (completely free of charge for non-commercial visual sharing). Export to popular platforms such as Revit, Unreal Engine, and Blender. Simplify your workflow from raw scan to final model with intuitive editing tools.

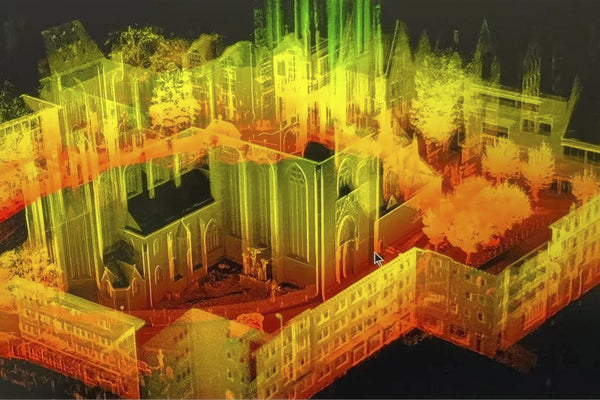

Building and Surrounding Grounds

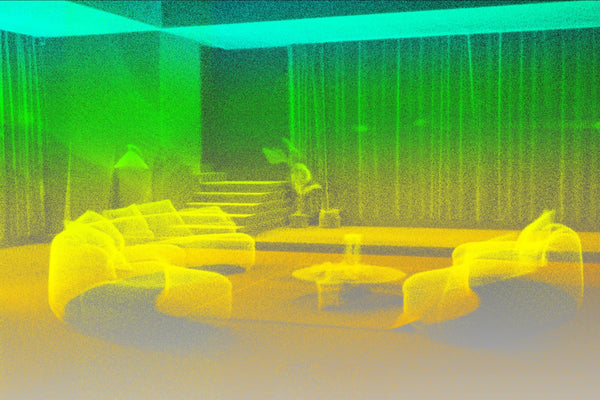

Interior Room

Accuracy	2 cm @ 10 m; 3 cm @ 20 m; 5 cm @ 40 m
Scan Radius	40–70 m (measured at >10% or >80% reflectivity)
Scan Range	80–140 m
Scan Angle	Horizontal 360°, Vertical 59°
Point Cloud Frequency	200,000 points/second
Laser Light Source	905 nm
Eye Safety	Class 1 (IEC60825-1:2014)
HDR Mode	Supports 3–5 EV
Color Texture	Max Edition: 4 × 48 MP fisheye cameras Standard Edition: 1 × 48 MP fisheye camera
Image Quality Output	8K Panoramic Color Output
Data Interface	USB Type-C × 2
Network Support	Wi-Fi 5

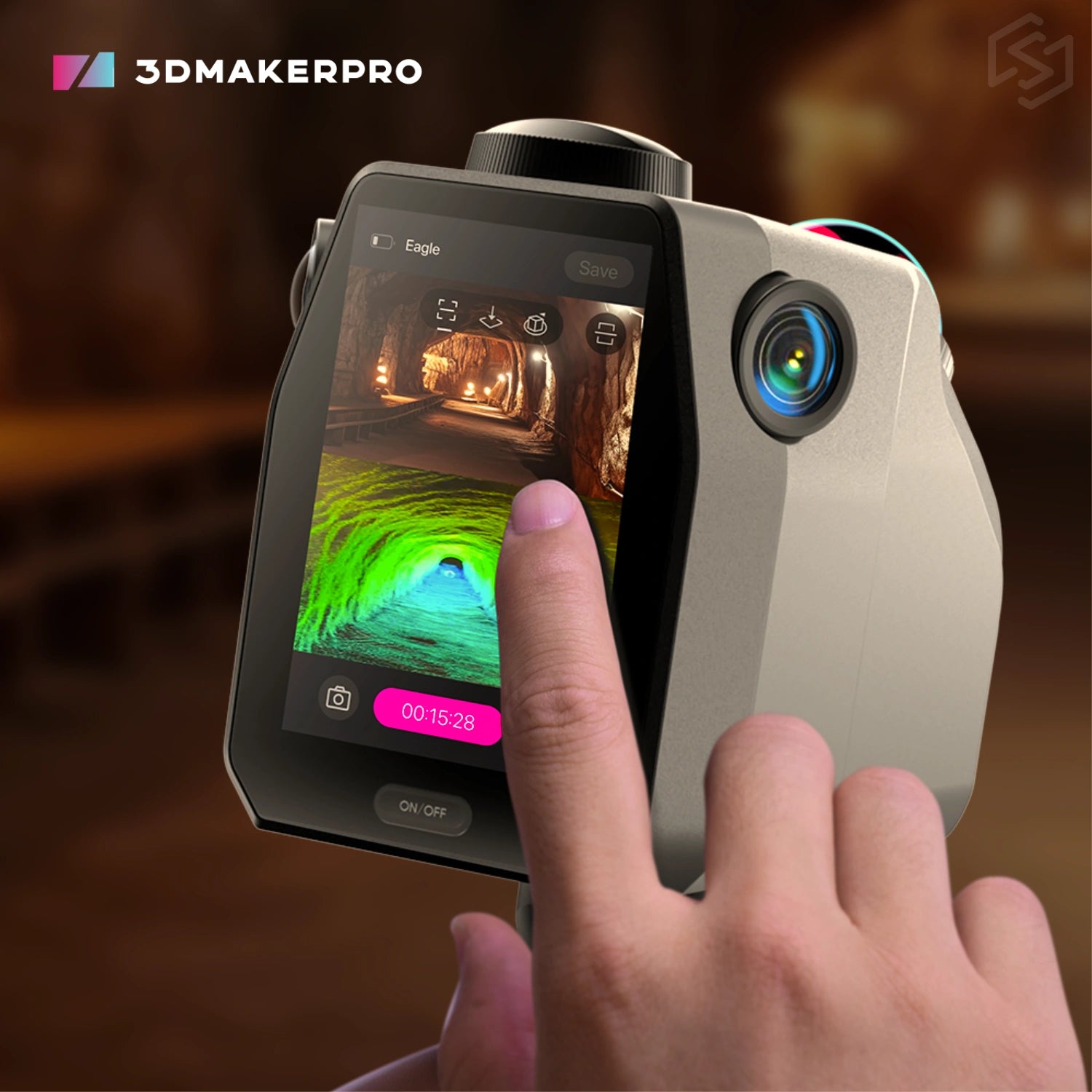

Screen	3.5"
Output Formats	3D Color Point Cloud (PLY); 3D Gaussian Splatting (PLY); 3D Colored Polygonal Model (OBJ); 3D Panoramic Tour Data (OBJ)
Built-in Battery	12,000 mAh (supports 1 hour of work; external power supply supported)
Dimensions	115 × 181 × 106 mm
Weight	1.5 kg
